MSP430FW425IPMR

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER

DESCRIPON

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the device to wake up from low-power modes to active mode in less than 6 µs.

FEATURES

• Low Supply Voltage Range: 1.8 V to 3.6 V

• Ultra-Low-Power Consumption:

   – Active Mode: 200 µA at 1 MHz, 2.2 V

   – Standby Mode: 0.7 µA

   – Off Mode RAM Retention: 0.1 µA

• Five Power-Saving Modes

• Wake Up From Standby Mode in Less Than 6 µs

• Frequency-Locked Loop, FLL+

• 16-Bit RISC Architecture, 125-ns Instruction Cycle Time

• Scan Interface for Background Water, Heat, and Gas Volume Measurement

• 16-Bit Timer_A With Three Capture/Compare Registers

• 16-Bit Timer_A With Five Capture/Compare Registers

• Integrated LCD Driver for Up to 96 Segments

• On-Chip Comparator

• Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse

• Brownout Detector

• Supply Voltage Supervisor and Monitor With Programmable Level Detection

• Bootstrap Loader BSL in Flash Devices

• Family Members Include:

   – MSP430FW423 8KB + 256B Flash Memory, 256B RAM

   – MSP430FW425 16KB + 256B Flash Memory, 512B RAM

   – MSP430FW427 32KB + 256B Flash Memory, 1KB RAM

   – MSP430FW428 48KB + 256B Flash Memory, 2KB RAM

   – MSP430FW429 60KB + 256B Flash Memory, 2KB RAM

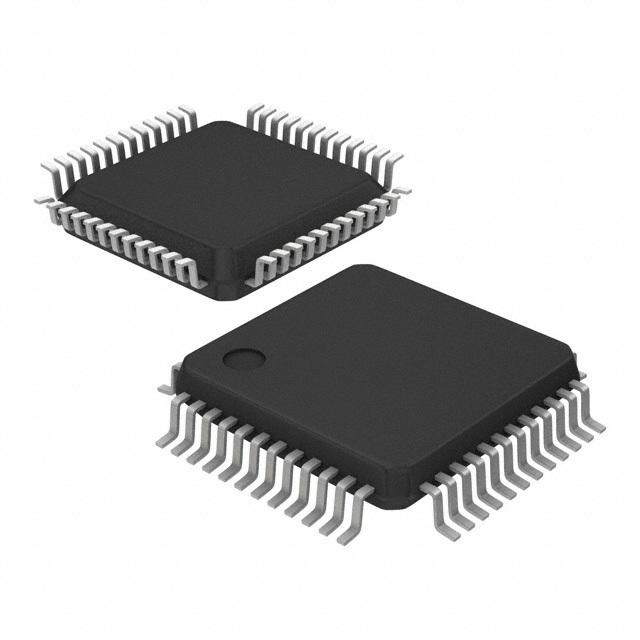

• Available in 64-Pin Quad Flat Pack QFP

• For Complete Module Descriptions, See the MSP430x4xx Family User"s Guide, Literature Number SLAU056

APPLICATIONS

• Analog Sensor Systems

• Digital Sensor Systems

• Gas, Heat, or Water Meters

• Industrial Meters

• Hand-Held Meters
