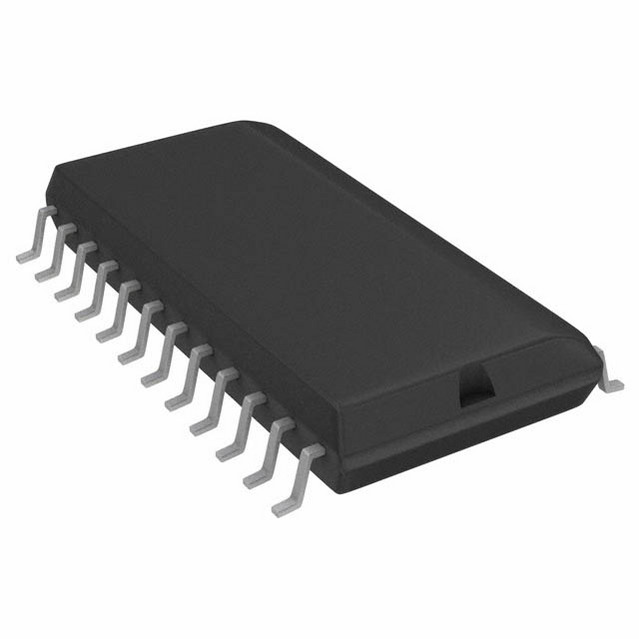

MC74ACT652DW图片1
MC74ACT652DW图片2
MC74ACT652DW图片3
MC74ACT652DW图片4
MC74ACT652DW图片5
MC74ACT652DW图片6
MC74ACT652DW图片7
MC74ACT652DW概述

八路收发器/寄存器具有三态输出(非反相) Octal Transceiver/Register with 3−State Outputs Non−Inverting

The MC74AC/ACT652 consists of registered bus transceiver circuits, with outputs, D−type flip−flops and control circuitry providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Data on the A or B bus will be loaded into the respective registers on the LOW−to−HIGH transition of the appropriate clock pin CAB or CBA. The four fundamental data handling functions available are illustrated in Figures 1 to 4.

• Independent Registers for A and B Buses

• Multiplexed Real−Time and Stored Data Transfers

• Choice of True and Inverting Data Paths

• 3−State Outputs

• 300 mil Slim Dual−in−Line Package

• Outputs Source/Sink 24 mA

• ′ACT652 Has TTL Compatible Inputs

• These devices are available in Pb−free packages. Specifications herein apply to both standard and Pb−free devices. Please see our website at www.onsemi.com for specific Pb−free orderable part numbers, or contact your local sales office or representative.

MC74ACT652DW中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 24

封装 SOIC-24

外形尺寸

高度 2.36 mm

封装 SOIC-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Rail

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

MC74ACT652DW引脚图与封装图
MC74ACT652DW引脚图
MC74ACT652DW封装图

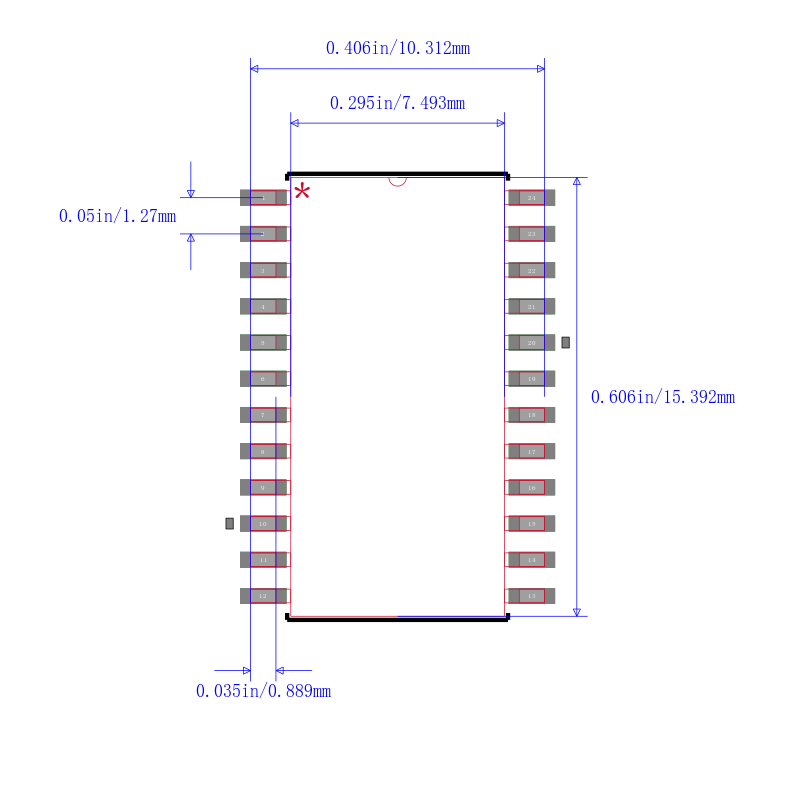

MC74ACT652DW封装焊盘图
在线购买MC74ACT652DW
型号: MC74ACT652DW
描述:八路收发器/寄存器具有三态输出(非反相) Octal Transceiver/Register with 3−State Outputs Non−Inverting
替代型号MC74ACT652DW
型号/品牌 代替类型 替代型号对比

MC74ACT652DW

ON Semiconductor 安森美

当前型号

当前型号

MC74ACT652NG

安森美

完全替代

MC74ACT652DW和MC74ACT652NG的区别

74ACTQ652SC

飞兆/仙童

类似代替

MC74ACT652DW和74ACTQ652SC的区别

74ACTQ652SCX

飞兆/仙童

功能相似

MC74ACT652DW和74ACTQ652SCX的区别
