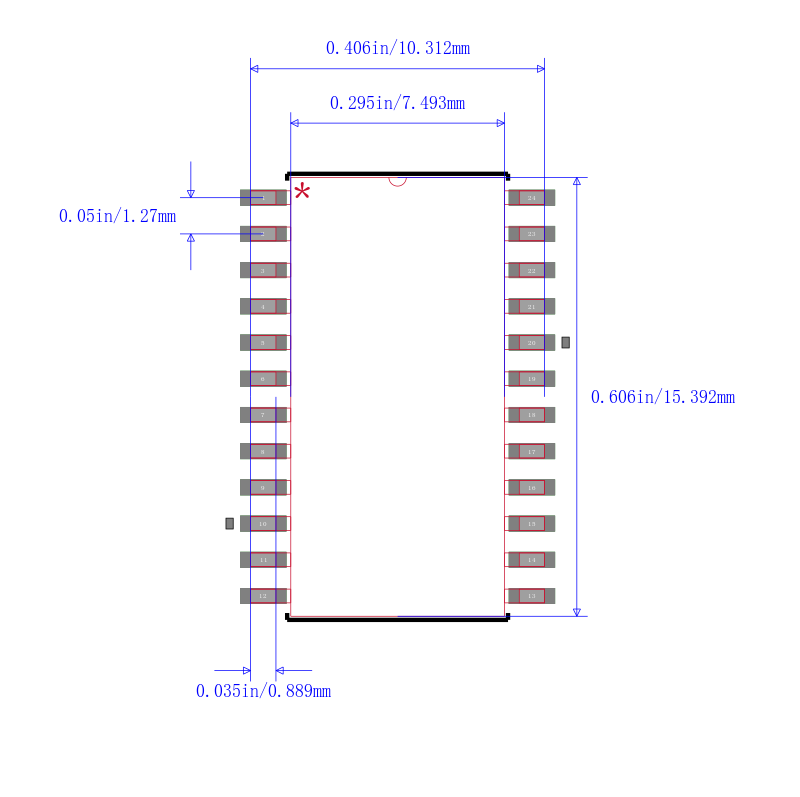

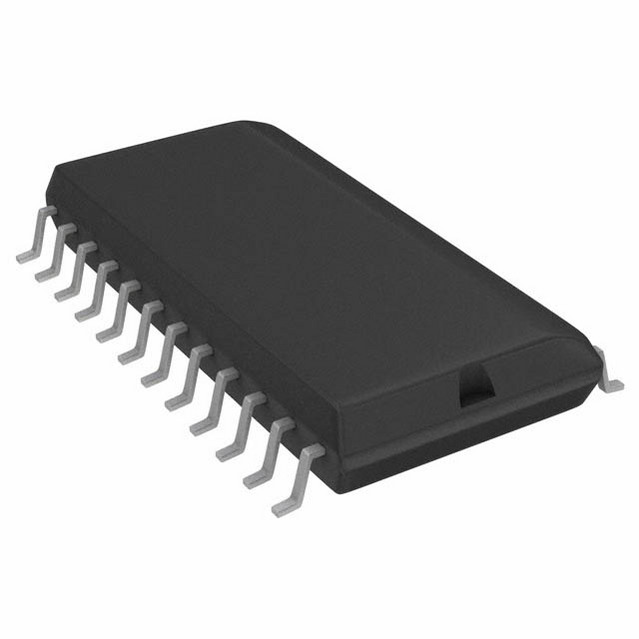

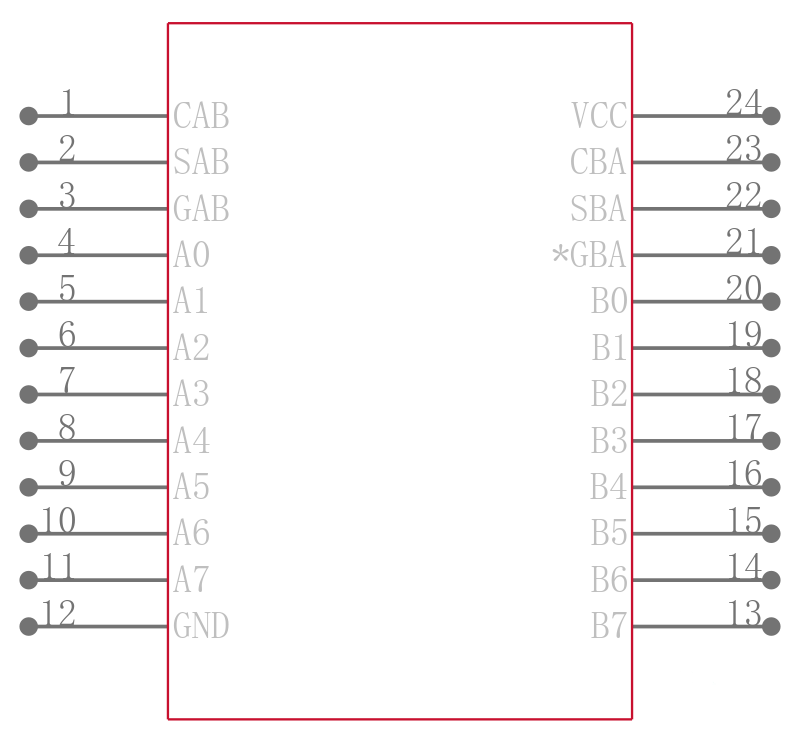

Bus XCVR Single 8CH 3-ST Automotive 24Pin SOIC Rail
The MC74AC/ACT652 consists of registered bus transceiver circuits, with outputs, D−type flip−flops and control circuitry providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Data on the A or B bus will be loaded into the respective registers on the LOW−to−HIGH transition of the appropriate clock pin CAB or CBA. The four fundamental data handling functions available are illustrated in Figures 1 to 4.
Features
• Independent Registers for A and B Buses
• Multiplexed Real−Time and Stored Data Transfers
• Choice of True and Inverting Data Paths
• 3−State Outputs
• 300 mil Slim Dual−in−Line Package
• Outputs Source/Sink 24 mA
• ′ACT652 Has TTL Compatible Inputs
• These are Pb−Free Devices
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74ACT652DWG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
