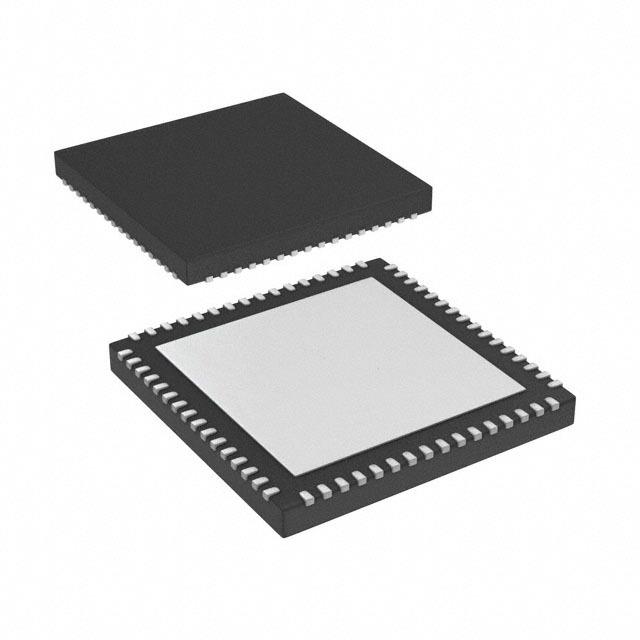

具有 64KB FRAM、2KB SRAM、LCD、AES、12 位 ADC、比较器、DMA、UART/SPI/I2C 和计时器的 16MHz MCU 64-VQFN -40 to 85
* Embedded Microcontroller * 16-Bit RISC Architecture up to 16-MHz Clock * Wide Supply Voltage Range 1.8 V to 3.6 V Minimum supply voltage is restricted by SVS levels. * Optimized Ultra-Low-Power Modes * Active Mode: Approximately 100 µA/MHz * Standby LPM3 With VLO: 0.4 µA Typical * Real-Time Clock RTC LPM3.5: 0.35 µA Typical The RTC is clocked by a 3.7-pF crystal. * Shutdown LPM4.5: 0.04 µA Typical * Ultra-Low-Power Ferroelectric RAM FRAM * Up to 64KBof Nonvolatile Memory * Ultra-Low-Power Writes * Fast Write at 125 ns per Word 64KB in 4 ms * Unified Memory =Program + Data + Storage in one Single Space * 1015 Write Cycle Endurance * Radiation Resistant and Nonmagnetic * Intelligent Digital Peripherals * 32-Bit Hardware Multiplier MPY * Three-Channel Internal Direct Memory Access DMA * RTC With Calendar and Alarm Functions * Five 16-Bit Timers With up to Seven Capture/Compare Registers * 16-Bit and 32-Bit Cyclic Redundancy Checker CRC16, CRC32 * High-Performance Analog * Up to 8-Channel Analog Comparator * 12-Bit Analog-to-Digital Converter ADC With Internal Reference and Sample-and-Hold and up to 8 External Input Channels * Integrated 116-Segment LCD Driver With Contrast Control * Code Security and Encryption * 128-Bit or 256-Bit AES Security Encryption and Decryption Coprocessor MSP430FR69xx1only * True Random Number Seed for Random Number Generation Algorithm * Lockable Memory Segments for IP Encapsulation and Secure Storage * Multifunction Input/output Ports * All I/o Pins Support Capacitive Touch Capability Without Need for External Components * Accessible Bit-, Byte- and Word-Wise in Pairs * Edge-Selectable Wakeup From LPM on Ports P1, P2, P3, and P4 * Programmable Pullup and Pulldown on All Ports * Enhanced Serial Communication * eUSCI-A0 and eUSCI-A1 Support * UART With Automatic Baud-Rate Detection * IrDA Encode and Decode * SPI at Rates up to 10 Mbps * eUSCI-B0 and eUSCI-B1 Support * I2C With Multiple-Slave Addressing * SPI at Rates up to10 Mbps * Flexible Clock System * Fixed-Frequency DCo With 10 Selectable Factory-Trimmed Frequencies * Low-Power Low-Frequency Internal Clock Source VLO * 32-kHz Crystals LFXT * High-Frequency Crystals HFXT
