混合信号微控制器 MIXED SIGNAL MICROCONTROLLER
MSP430 MSP430x4xx Microcontroller IC 16-Bit 8.4MHz 16KB 16K x 8 + 256B FLASH 64-LQFP 10x10
得捷:
IC MCU 16BIT 16KB FLASH 64LQFP
立创商城:
MSP430 8.4MHz 闪存:16K@x8bit RAM:512Byte
德州仪器TI:
8-MHz metering MCU with 3 16-bit sigma-delta ADCs, 128-segment LCD, 16KB Flash, 512B RAM
贸泽:
16位微控制器 - MCU 16KB Flash 512B RAM for Energy Meters
艾睿:
With the MSP430FE425IPMR microcontroller by Texas Instruments, many functions and tasks can be automated to a developer&s;s desired specifications. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 8 MHz. Its ADC resolution is 16. This is a 16 bit processor. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. Its flash program memory is 16KB. This device is based on the MSP430 core architecture.
安富利:
MCU 16-bit MSP430 RISC 16KB Flash 3.3V 64-Pin LQFP T/R
Chip1Stop:
MCU 16-bit MSP430 MSP430 RISC 16KB Flash 3.3V 64-Pin LQFP T/R
TME:
MSP430 microcontroller; SRAM:512B; Flash:16kB; 8MHz; LQFP64
Verical:
MCU 16-bit MSP430 MSP430 RISC 16KB Flash 3.3V 64-Pin LQFP T/R
Win Source:
MSP430 MSP430x4xx Microcontroller IC 16-Bit 8.4MHz 16KB 16K x 8 + 256B FLASH 64-LQFP 10x10
频率 8 MHz
电源电压DC 1.80V min
时钟频率 8.00 MHz
RAM大小 512 x 8
位数 16
FLASH内存容量 16 KB
I/O引脚数 14
内核架构 MSP430
UART数量 1
模数转换数ADC 1
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 64

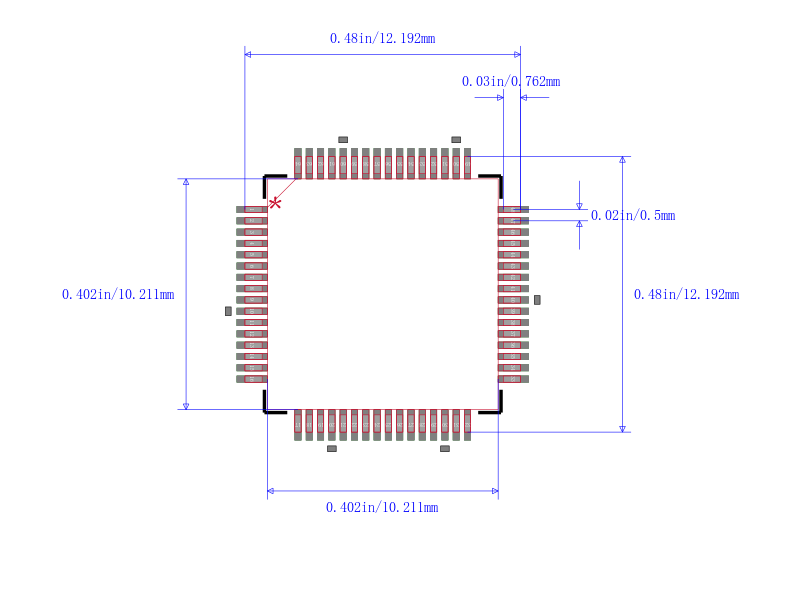

封装 LQFP-64
长度 10 mm
宽度 10 mm
高度 1.4 mm
封装 LQFP-64
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430FE425IPMR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430FE425IPM 德州仪器 | 类似代替 | MSP430FE425IPMR和MSP430FE425IPM的区别 |
