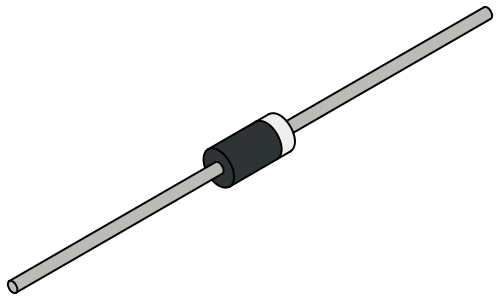

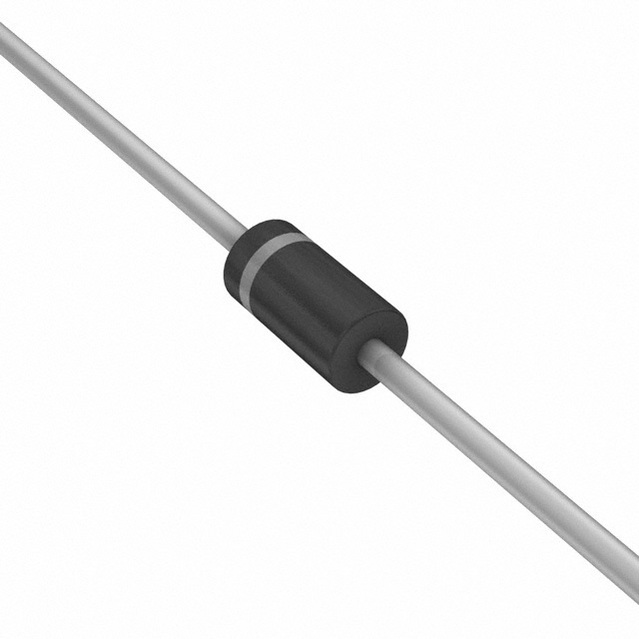

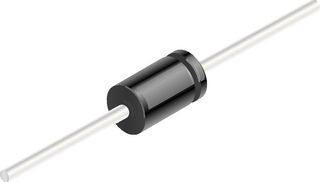

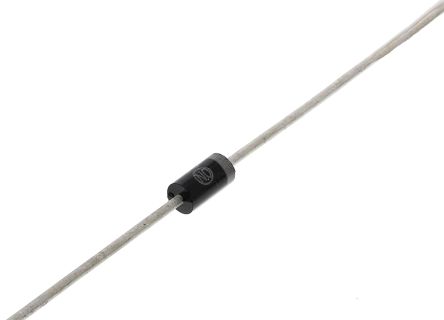

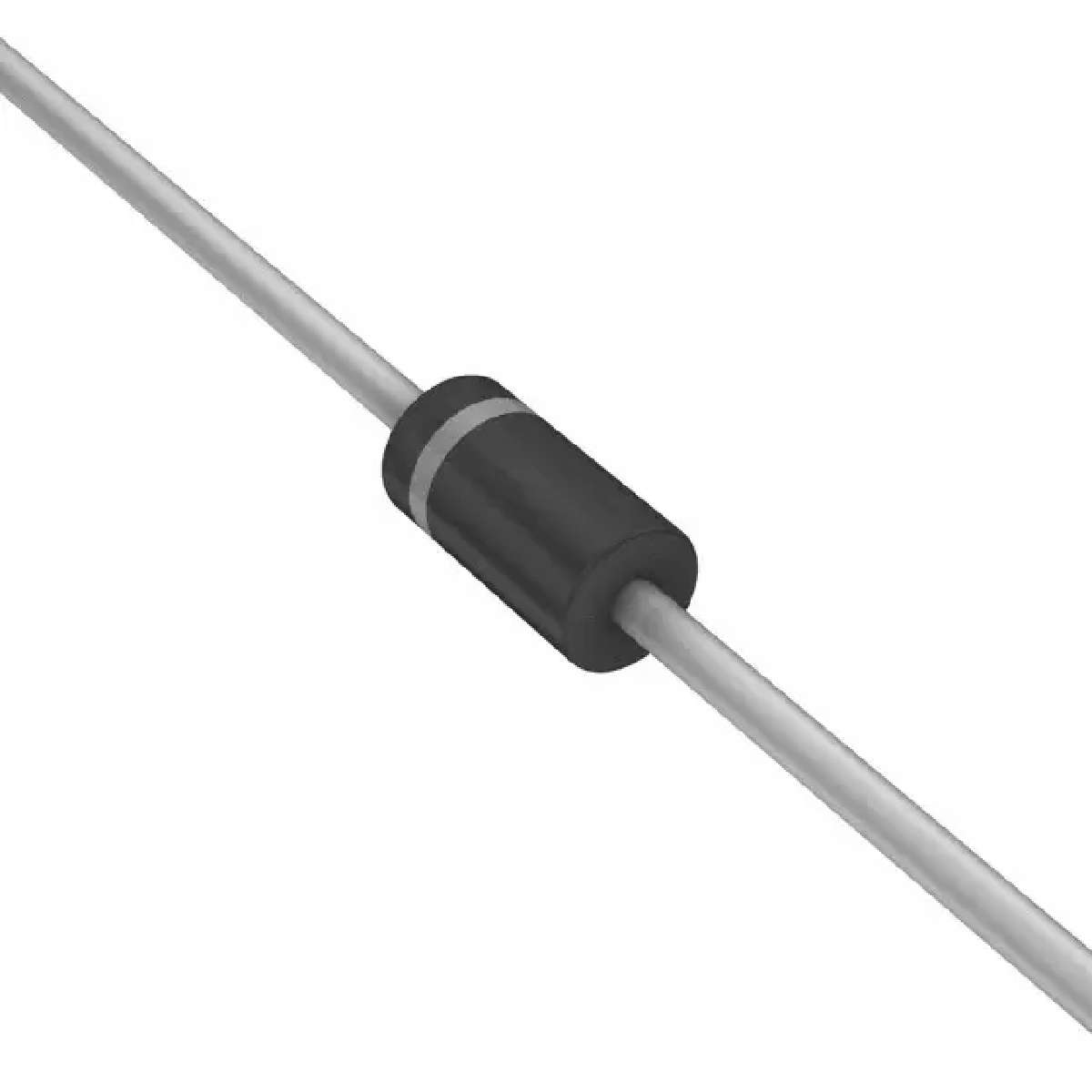

ON SEMICONDUCTOR MUR110RLG 快速/超快二极管, 单, 100 V, 1 A, 1.25 V, 75 ns, 35 A
整流器,1A 至 1.5A,
### 标准
带 NSV- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
功率整流器,超快速恢复,开关模式,1 A,100 V
得捷:
DIODE GEN PURP 100V 1A AXIAL
欧时:
### 整流器二极管,1A 至 1.5A,ON Semiconductor### 标准带 NSV- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。### 二极管和整流器,ON Semiconductor
e络盟:
快速/超快二极管, 100 V, 1 A, 单, 1.25 V, 75 ns, 35 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode MUR110RLG rectifier from ON Semiconductor. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 175 °C. Its peak non-repetitive surge current is 35 A, while its maximum continuous forward current is 1@Ta=130C A.
Allied Electronics:
ON Semi MUR110RLG, Switching Diode, 100V 1A, 35ns, 2-Pin DO-41
安富利:
Diode Switching 100V 1A 2-Pin DO-41 T/R
Chip1Stop:
Diode Switching 100V 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 100V 1A 35ns 2-Pin DO-41 T/R
Newark:
# ON SEMICONDUCTOR MUR110RLG Fast / Ultrafast Diode, 100 V, 1 A, Single, 1.25 V, 75 ns, 35 A
额定电压DC 100 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
正向电压 1.25 V
极性 Standard
热阻 87 ℃/W
反向恢复时间 35 ns
最大反向击穿电压 100 V
正向电流 1 A
最大正向浪涌电流(Ifsm) 35 A
正向电压Max 1.25 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 DO-204AL
长度 5.2 mm
宽度 2.7 mm
高度 5.2 mm
封装 DO-204AL
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MUR110RLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N4002RLG 安森美 | 类似代替 | MUR110RLG和1N4002RLG的区别 |
1N4002G 安森美 | 类似代替 | MUR110RLG和1N4002G的区别 |
1N4934G 安森美 | 类似代替 | MUR110RLG和1N4934G的区别 |
