ON SEMICONDUCTOR MBR160G. 肖特基整流器

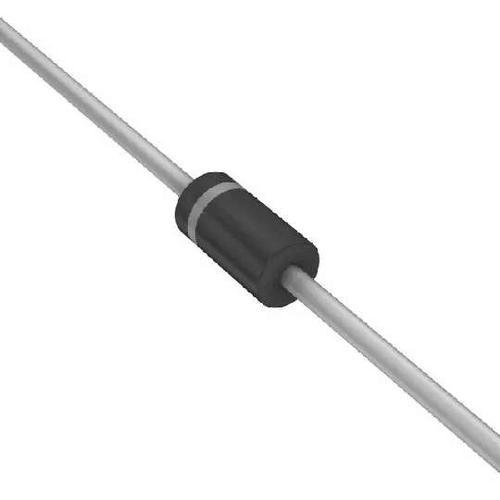

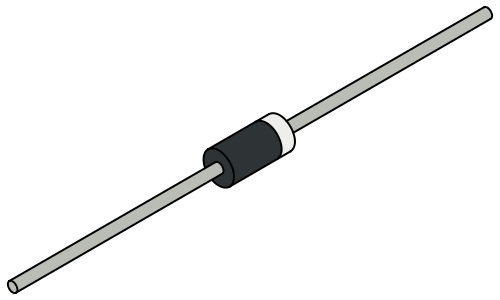

The is an axial-lead Schottky Rectifier with an epoxy moulded case. It employs the Schottky barrier principle in a large area metal-to-silicon power diode. The state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free-wheeling diodes and polarity protection diodes.
额定电压DC 60.0 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
针脚数 2
正向电压 750mV @1A
极性 Standard
热阻 80℃/W RθJA
正向电流 1 A
最大正向浪涌电流(Ifsm) 25 A
正向电压Max 750 mV
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.2 mm
宽度 2.7 mm
高度 2.7 mm
封装 DO-41
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBR160G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBR160RLG 安森美 | 完全替代 | MBR160G和MBR160RLG的区别 |
MBR160 安森美 | 完全替代 | MBR160G和MBR160的区别 |
MBR160RL 安森美 | 完全替代 | MBR160G和MBR160RL的区别 |
