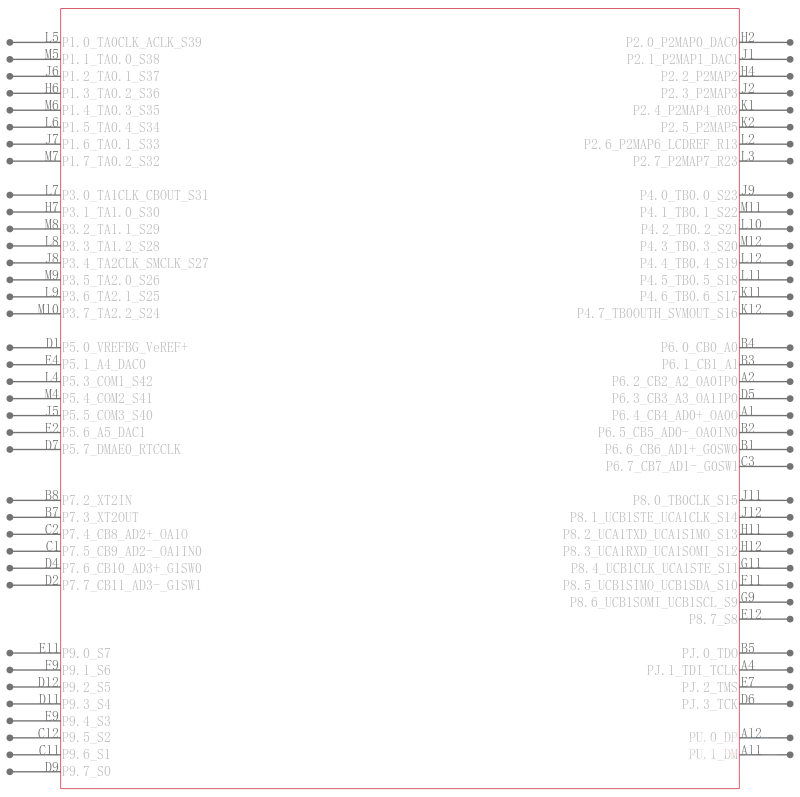

MSP430FG6626IZQWR

具有 128KB 闪存、10KB SRAM、16 位 Σ-Δ ADC、双 DAC、DMA、2 个运算放大器和 160 段 LCD 的 25MHz MCU 113-BGA MICROSTAR JUNIOR -40 to 85

The MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the device to wake up from low-power modes to active mode in 3 µs typical.

The MSP430FG6626 and MSP430FG6625 are microcontrollers with a high-performance 16-bit analog-to-digital converter ADC, dual 12-bit digital-to-analog converters DACs, dual operational amplifiers, a comparator, two universal serial communication interfaces USCIs, USB 2.0, a hardware multiplier, DMA, four 16-bit timers, a real-time clock RTC module with alarm capabilities, an LCD driver, and up to 73 I/O pins.

The MSP430FG6426 and MSP430FG6425 are microcontrollers with a high-performance 16-bit ADC, dual 12-bit DACs, dual low-power operational amplifiers, a comparator, two USCIs, a 3.3-V LDO, a hardware multiplier, DMA, four 16-bit timers, an RTC module with alarm capabilities, an LCD driver, and up to 73 I/O pins.

Typical applications for these devices include analog and digital sensor systems, hand-held meters, such as medical diagnostic meters, measurement equipment, and hand-held industrial testers.
