MAX9614AXT+T

MAXIM INTEGRATED PRODUCTS  MAX9614AXT+T  运算放大器, 轨至轨输出, 2.8 MHz, 1个放大器, 1.3 V/µs, 2.5V 至 5.5V, SC-70, 6 引脚

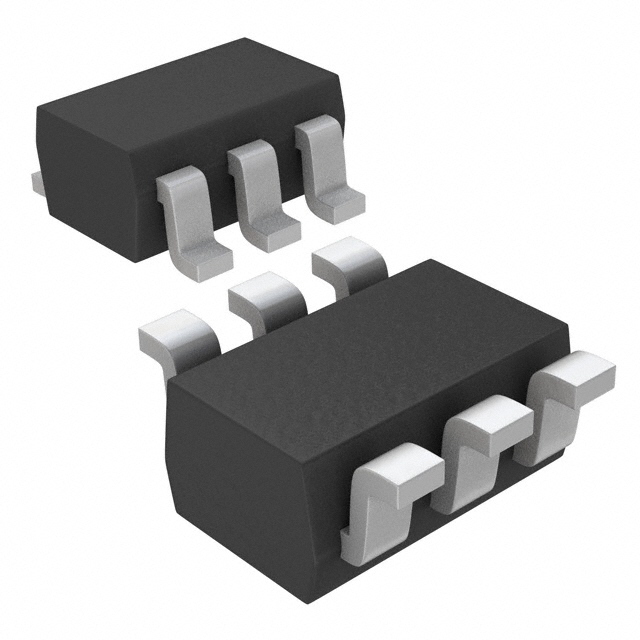

The is a low power, single, precision rail to rail operational amplifier op-amp in 6 pin SC-70 package. The device has precision MOS inputs and it is ideal for a large number of applications such as photodiode transimpedance amplifiers and filtering/amplification. The MAX9614 is capable of operating from 2.5V to 5.5V supply voltage. The device has an active-low shutdown pin. The low power shutdown mode greatly reduces quiescent current while the device is not operational. The MAX9614 self calibrate on power-up to eliminate effects of temperature and power supply variation.

.

Excellent RF immunity

.

Automotive temperature range from -40°C to 125°C

.

Save board space and dissipate heat

.

Input bias current of 1pA and input offset current of 0.5pA at TA = -40°C to 125°C

.

Quiescent current of 170µA per amplifier at TA = 25°C and shutdown supply current of 1µA

.

2.8MHz gain bandwidth and 1.3V/µs slew rate

.

Input offset voltage of 17µV of TA = 25°C and input offset voltage drift of 1µV/°C

.

CMRR of 95dB VCM = -0.1V to VCC - 1.4V, TA = +25°C and PSRR of 106dB at TA = +25°C

.

Open loop gain of 115dB at 0.4V
