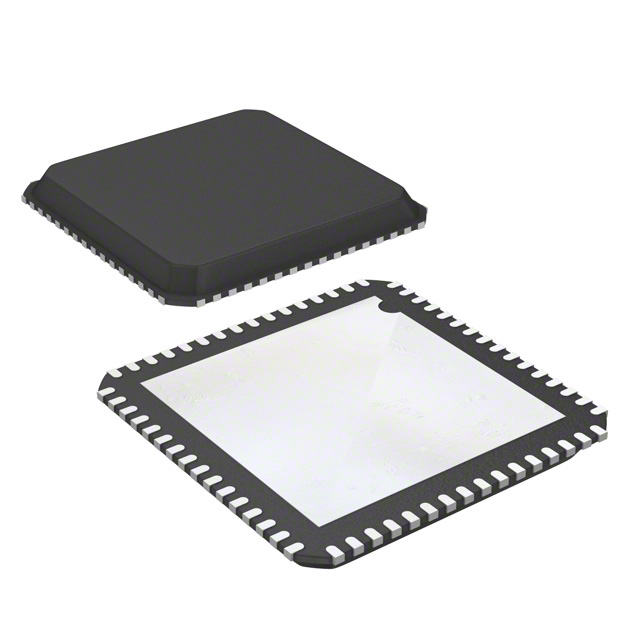

MSP430F155IRTDR

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER

description

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6 μs.

Low Supply-Voltage Range: 1.8 V to 3.6 V

Ultralow Power Consumption

− Active Mode: 330 μA at 1 MHz, 2.2 V

− Standby Mode: 1.1 μA

− Off Mode RAM Retention: 0.2 μA

Five Power-Saving Modes

Wake-Up From Standby Mode in Less Than 6 μs

16-Bit RISC Architecture, 125-ns Instruction Cycle Time

Three-Channel Internal DMA

12-Bit Analog-to-Digital A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature

Dual 12-Bit Digital-to-Analog D/A

Converters With Synchronization

16-Bit Timer_A With Three Capture/Compare Registers

16-Bit Timer_B With Three or Seven Capture/Compare-With-Shadow Registers

On-Chip Comparator

Serial Communication Interface USART0, Functions as Asynchronous UART or Synchronous SPI or I2CTM Interface

Serial Communication Interface USART1, Functions as Asynchronous UART or Synchronous SPI Interface

Supply Voltage Supervisor/Monitor With Programmable Level Detection

Brownout Detector

Bootstrap Loader

Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse

Family Members Include

− MSP430F155

16KB+256B Flash Memory

512B RAM

− MSP430F156

24KB+256B Flash Memory

1KB RAM

− MSP430F157

32KB+256B Flash Memory,

1KB RAM

− MSP430F167

32KB+256B Flash Memory,

1KB RAM

− MSP430F168

48KB+256B Flash Memory,

2KB RAM

− MSP430F169

60KB+256B Flash Memory,

2KB RAM

− MSP430F1610

32KB+256B Flash Memory

5KB RAM

− MSP430F1611

48KB+256B Flash Memory

10KB RAM

− MSP430F1612

55KB+256B Flash Memory

5KB RAM

Available in 64-Pin QFP Package PM and 64-Pin QFN Package RTD

For Complete Module Descriptions, See the MSP430x1xx Family User’s Guide, Literature Number SLAU049
