混合信号微控制器 MIXED SIGNAL MICROCONTROLLER
The MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the device to wake up from low-power modes to active mode in less than 6 µs.
The MSP430xG461x series are microcontroller configurations with two 16-bit timers, a high-performance 12-bit ADC, dual 12-bit DACs, three configurable operational amplifiers, one universal serial communication interface USCI, one universal synchronous/asynchronous communication interface USART, DMA, 80 I/O pins, and a segment liquid crystal display LCD driver with regulated charge pump.
频率 8 MHz
电源电压DC 1.80V min
时钟频率 8.00 MHz
RAM大小 8 KB
位数 16
FLASH内存容量 116 KB
UART数量 1
模数转换数ADC 1
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 113

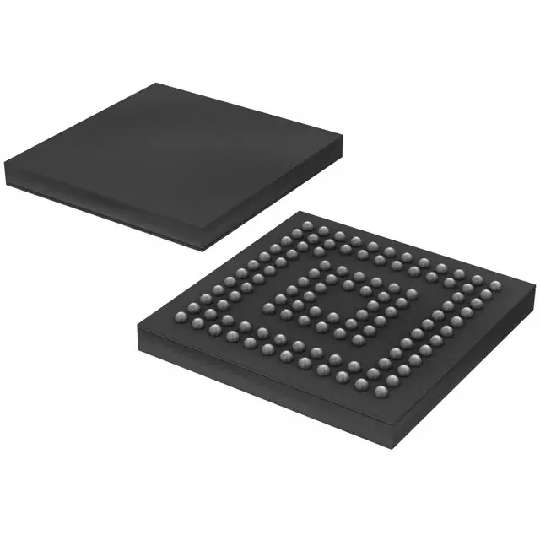

封装 BGA-113
高度 0.77 mm
封装 BGA-113
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430FG4618IZQWR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430FG4618IPZR 德州仪器 | 类似代替 | MSP430FG4618IZQWR和MSP430FG4618IPZR的区别 |
MSP430FG4618IZQWT 德州仪器 | 类似代替 | MSP430FG4618IZQWR和MSP430FG4618IZQWT的区别 |
MSP430FG4618IZQW 德州仪器 | 类似代替 | MSP430FG4618IZQWR和MSP430FG4618IZQW的区别 |
