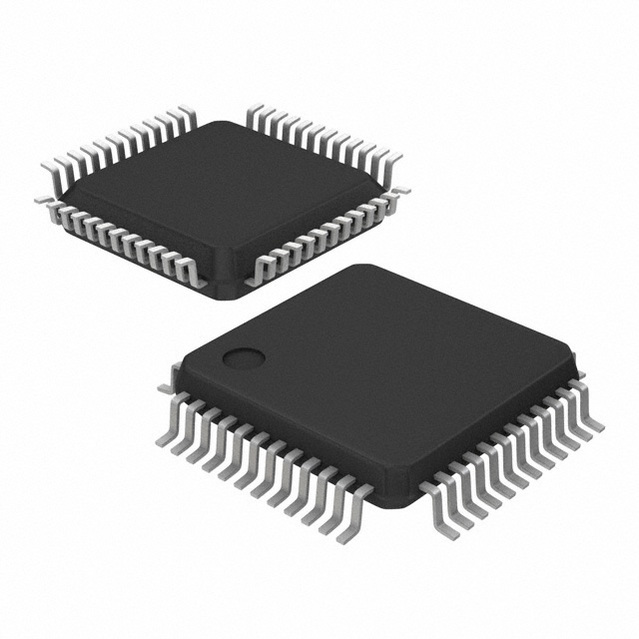

TEXAS INSTRUMENTS MSP430F2619TPMR. 芯片, 微控制器, 16位, MSP430, 16MHZ, LQFP-64
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F261x and MSP430F241x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, a comparator, dual 12-bit D/A converters, four universal serial communication interface USCI modules, DMA, and up to 64 I/O pins. The MSP430F241x devices are identical to the MSP430F261x devices, with the exception that the DAC12 and the DMA modules are not implemented.
Typical applications include sensor systems, industrial control applications, and hand-held meters. The 12mmx12mm LQFP-64 package is also available as a non-magnetic package for medical imaging applications.
频率 16.0 MHz
电源电压DC 1.80V min
针脚数 64
时钟频率 16.0 MHz
RAM大小 4 KB
位数 16
FLASH内存容量 120 KB
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 48 Input
工作温度Max 105 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F2619TPMR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F2619TPM 德州仪器 | 类似代替 | MSP430F2619TPMR和MSP430F2619TPM的区别 |
