MAXIM INTEGRATED PRODUCTS MAX4162ESA+T 运算放大器, 轨至轨输出, 200 kHz, 1个放大器, 115 V/ms, ± 1.25V至± 5V, 2.5V至10V, NSOIC, 8 引脚
The is a micropower, rail to rail I/O operational amplifier op-amp in 8 pin NSOIC package. This single operational amplifier combines an exceptional bandwidth to power consumption ratio with true rail to rail inputs and outputs. It consume 25µA quiescent current per amplifier, yet achieve 200kHz gain-bandwidth product and is unity-gain stable while driving any capacitive load. It operates with an input common-mode voltage range that extends 250mV beyond either supply rail. This amplifier uses a proprietary architecture to achieve a very high input common mode rejection ratio without the midswing nonlinearities present in other rail to rail op-amp. This architecture also maintains high open-loop gain and output swing while driving substantial loads. The combination of excellent bandwidth/power performance and miniature footprint makes this op-amp ideal for low-power, single-supply applications.
供电电流 25 µA
电路数 1
针脚数 8
耗散功率 588 mW
带宽 200 kHz
增益频宽积 200 kHz
输入补偿电压 500 μV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount

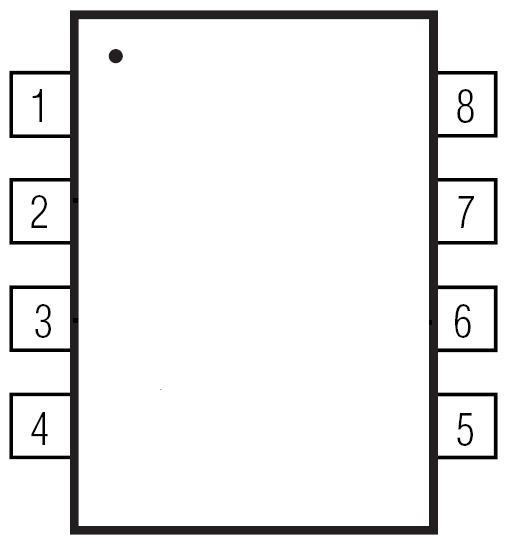

引脚数 8
封装 NSOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 NSOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 工业, 信号处理, 医用, Signal Processing, Portable Devices, Industrial, 便携式器材, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4162ESA+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
AD8031ARZ 亚德诺 | 功能相似 | MAX4162ESA+T和AD8031ARZ的区别 |
AD8031ARZ-REEL7 亚德诺 | 功能相似 | MAX4162ESA+T和AD8031ARZ-REEL7的区别 |
AD8031BRZ 亚德诺 | 功能相似 | MAX4162ESA+T和AD8031BRZ的区别 |
