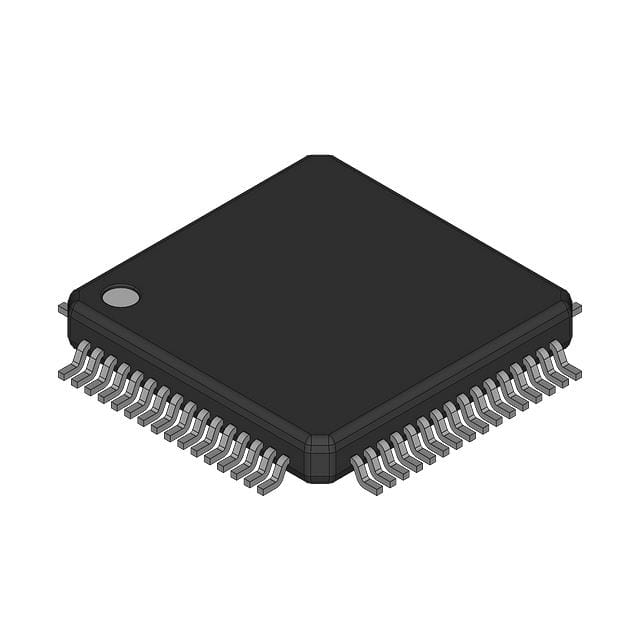

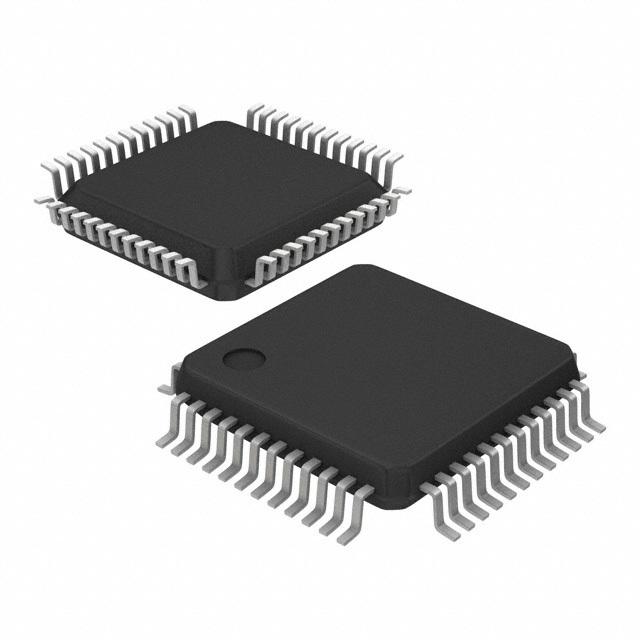

MSP430F1611IPMR

TEXAS INSTRUMENTS  MSP430F1611IPMR  微控制器, 16位, 混合信号, MSP430F1xx, 8 MHz, 48 KB, 10 KB, 64 引脚, LQFP

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with two 16-bit timers, 12-bit A/D converter, dual 12-bit D/A converter, a comparator, a hardware multiplier, 48 general-purpose I/O pins and offers extended RAM addressing for memory-intensive applications and large C-stack requirements. This device operates at a maximum frequency of 8MHz.

.

16-bit RISC architecture, 125ns instruction cycle time

.

3-channel internal DMA

.

12-bit ADC with internal reference, sample-and-hold and autoscan feature

.

Dual 12-bit DAC converters with synchronization

.

16-bit Timer_A with 3 Capture/Compare registers

.

16-bit Timer_B with 7 Capture/Compare with shadow registers

.

On-chip comparator

.

Serial communication interface USART0 functions as asynchronous UART/Synchronous SPI/I2C interface

.

Serial communication interface USART1 functions as asynchronous UART/Synchronous SPI interface

.

Supply voltage supervisor/monitor with programmable level detection

.

Brownout detector

.

Bootstrap loader

.

Serial on-board programming

.

No external programming voltage needed

.

Programmable code protection by security fuse

.

330µA at 1MHz, 2.2V Active mode AM power consumption
