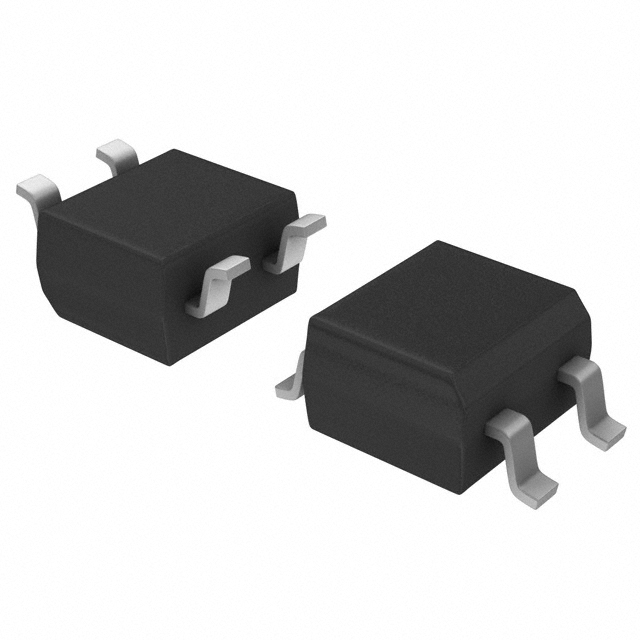

VISHAY MB4S-E3/45 二极管 桥式整流, 单相, 400 V, 600 mA, TO-269AA, 1 V, 4 引脚
The is a 4-pin single-phase miniature surface-mount Bridge Rectifier Diode with glass passivated fast recovery. It is used in general purpose AC/DC bridge full wave rectification for lighting ballast, battery charger, home appliances, office equipment and telecommunication applications.
- .
- UL94V-0 Flammability rating
- .
- Saves space on printed circuit boards
- .
- Ideal for automated placement
- .
- High surge current capability
- .
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
- .
- 280V Maximum RMS voltage
- .
- -55 to 150°C Operating junction temperature range
电容 13.0 pF
输出电流 ≤500 mA
针脚数 4
正向电压 1V @400mA
正向电流 600 mA
最大正向浪涌电流（Ifsm） 35 A
正向电压Max 1 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-269
长度 4.95 mm
宽度 4.1 mm
高度 2.7 mm
封装 TO-269
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Consumer Electronics, Industrial, Lighting, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MB4S-E3/45 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MB4S-E3/80 威世 | 类似代替 | MB4S-E3/45和MB4S-E3/80的区别 |
B4S-E3/80 威世 | 类似代替 | MB4S-E3/45和B4S-E3/80的区别 |
MB4S 飞兆/仙童 | 功能相似 | MB4S-E3/45和MB4S的区别 |
