翻两番低功耗运算放大器 QUADRUPLE LOW-POWER OPERATIONAL AMPLIFIERS
The MC3303 and the MC3403 are quadruple operational amplifiers similar in performance to the uA741, but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 3 V to 36 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 36 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC 1.5 V. Quiescent supply currents are less than one-half those of the uA741.
The MC3303 is characterized for operation from 40°C to 85°C, and the MC3403 is characterized for operation from 0°C to 70°C.
电源电压DC 30.0 V
供电电流 2.8 mA
电路数 4
通道数 4
共模抑制比 70 dB
输入补偿漂移 10.0 µV/K
带宽 1 MHz
转换速率 600 mV/μs
增益频宽积 1 MHz
输入补偿电压 2 mV
输入偏置电流 200 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 70 dB
安装方式 Through Hole

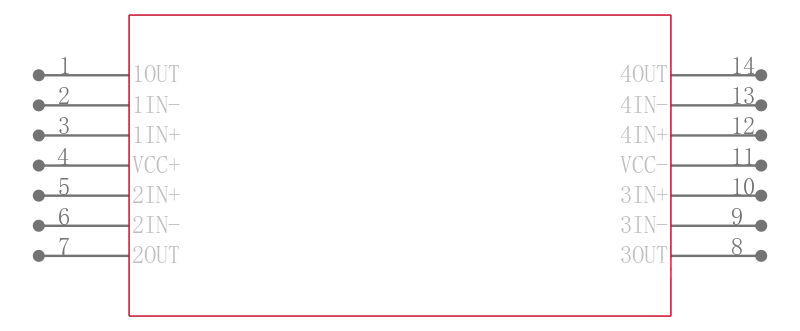

引脚数 14
封装 DIP-14
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 DIP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC3303N TI 德州仪器 | 当前型号 | 当前型号 |
7704302XA 德州仪器 | 完全替代 | MC3303N和7704302XA的区别 |
JM38510/11001BCA 德州仪器 | 功能相似 | MC3303N和JM38510/11001BCA的区别 |
MC3303NE4 德州仪器 | 功能相似 | MC3303N和MC3303NE4的区别 |
