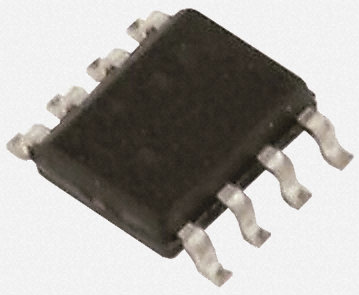

MC33172DG

ON SEMICONDUCTOR  MC33172DG  运算放大器, 双路, 1.8 MHz, 2个放大器, 2.1 V/µs, ± 1.5V 至 ± 22V, SOIC, 8 引脚

MC33171/2/4，MCV33172，低功率，单电源 3 V 至 44 V，，

MC33171（单路），MC33172（双路），MC33174（四路）

低电源电流：每个放大器 180 μA

宽带宽：1.8 MHz

高转换速率：2.1 V/μs

低输入偏置电压：2 mV

NCV33172 适用于汽车应用；符合 AEC-Q100

得捷:
IC OPAMP GP 2 CIRCUIT 8SOIC

立创商城:
MC33172DG

欧时:
### MC33171/2/4，MCV33172，低功率，单电源 3 V 至 44 V，运算放大器，ON SemiconductorMC33171（单路），MC33172（双路），MC33174（四路） 低电源电流：每个放大器 180 μA 宽带宽：1.8 MHz 高转换速率：2.1 V/μs 低输入偏置电压：2 mV NCV33172 适用于汽车应用；符合 AEC-Q100 ### 运算放大器，ON Semiconductor

艾睿:
Op Amp Dual Low Power Amplifier ±22V/44V 8-Pin SOIC N Rail

Allied Electronics:
MC33172DG, Dual Op Amp, 1.8MHz, 5 - 28 V, 8-Pin SOIC

安富利:
OP Amp Dual GP ±22V/44V 8-Pin SOIC N Rail

Chip1Stop:
OP Amp Dual GP ±22V/44V 8-Pin SOIC N Rail

TME:
Operational amplifier; 1.8MHz; 3÷44V; Channels:2; SO8

Verical:
Op Amp Dual Low Power Amplifier ±22V/44V 8-Pin SOIC N Rail

Newark:
The MC33172DG is a quality bi-polar monolithic single-supply low power Operational Amplifier operates at 180A per amplifier and offer 1.8MHz of gain bandwidth product and 2.1V/s slew rate without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage includes ground potential VEE. With a Darlington input stage this device exhibit high input resistance and low input offset voltage and high gain. The all NPN output stage characterized by no dead-band crossover distortion and large output voltage swing, provides high capacitance drive capability and excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.

力源芯城:
低功耗

DeviceMart:
IC OPAMP DUAL LOW POWER 8-SOIC
