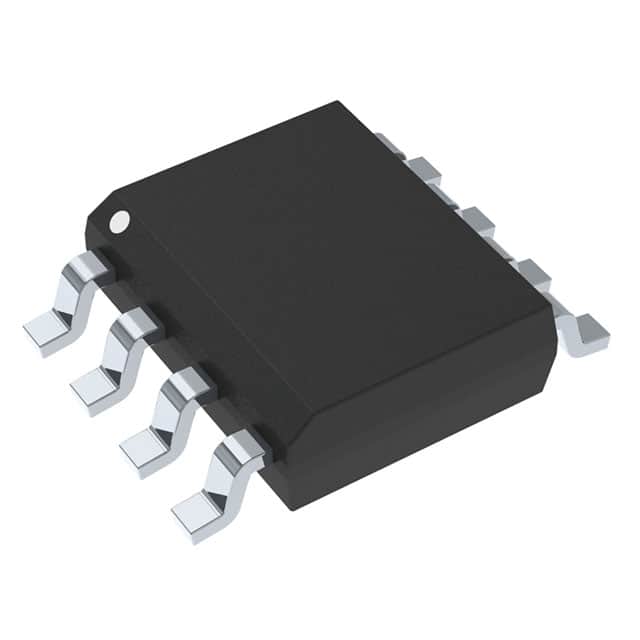

MC100LVEL33DG

3.3V ECL ÷4 除法器

The MC100LVEL33 is an integrated div by 4 divider. The LVEL is functionally equivalent to the EL33 and works from a 3.3 V supply.The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flops will attain a random state; the reset allows for the synchronization of multiple LVEL33"s in a system. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. V may also rebias AC coupled inputs. When used, decouple V via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V

Features

---

 |

.

630ps Propagation Delay

.

4.0 GHz Typical Maximum Frequency

.

ESD Protection: >4 KV HBM, >200 V MM

.

The 100 Series Contains Temperature Compensation

.

PECL Mode Operating Range: VCC= 3.0 V to 3.8 V with VEE= 0 V

.

NECL Mode Operating Range: VCC= 0 V with VEE= -3.0 V to -3.8 V

.

Internal Input Pulldown Resistors

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 130 devices

.

Pb-Free Packages are Available
