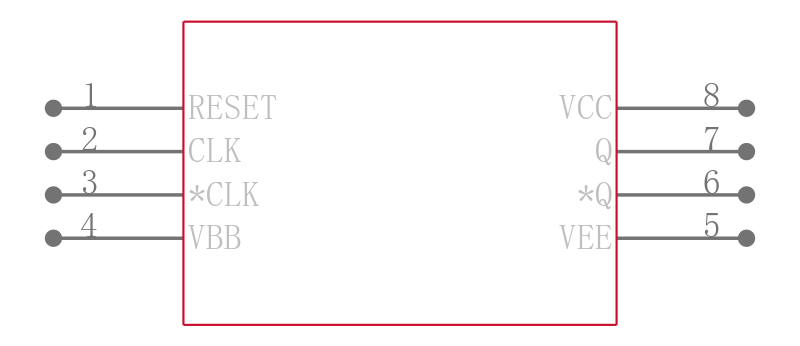

MC100EL32DG

ON SEMICONDUCTOR  MC100EL32DG  DIVIDER, DIVIDE BY 2, SOIC-8 新

The MC10EL/100EL32 is an integrateddivide by 2 divider. The differential clock inputs and the V allow a differential, single-ended or AC coupled interface to the device. If used, the V output should be bypassed to ground with a 0.01 F capacitor. Also note that the V is designed to be used as an input bias on the EL32 only, the V output has limited current sink and source capability. The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flop will attain a random state; the reset allows for the synchronization of multiple EL32"s in a system.The 100 Series contains temperature compensation.

Features

---

 |

.

510ps Propagation Delay

.

3.0GHz Toggle Frequency

.

ESD Protection: > 1 KV HBM, > 100 V MM

.

PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V

.

NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V

.

Internal Input Pulldown Resistors on CLKs and R.

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 82 devices
