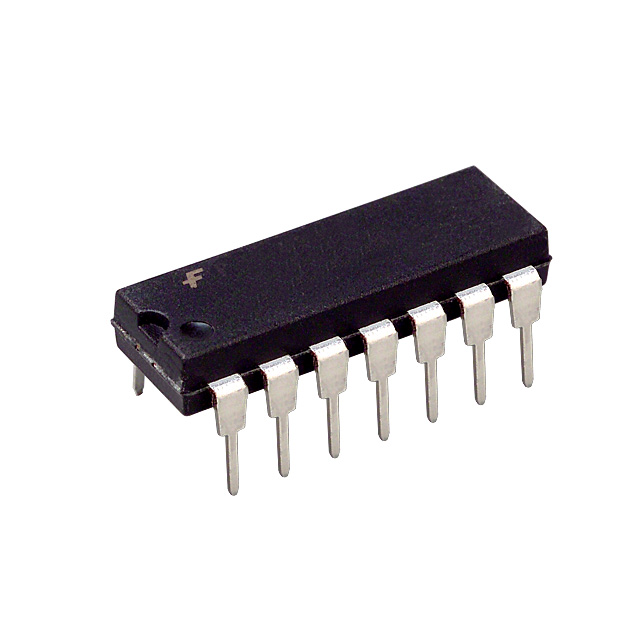

MM88C30N

四单端线路驱动器。双路差动线路驱动器 Quad Single-Ended Line Driver . Dual Differential Line Driver

General Description

The MM88C30 is a dual differential line driver that also performs the dual four-input NAND or dual four-input AND function. The absence of a clamp diode to VCC in the input protection circuitry of the MM88C30 allows a CMOS user to interface systems operating at different voltage levels. Thus, a CMOS digital signal source can operate at a VCC voltage greater than the VCC voltage of the MM88C30 line driver. The differential output of the MM88C30 eliminates ground-loop errors.

The MM88C29 is a non-inverting single-wire transmission line driver. Since the output ON resistance is a low 20Ω typ., the device can be used to drive lamps, relays, solenoids, and clock lines, besides driving data lines.

Features

■ Wide supply voltage range: 3V to 15V

■ High noise immunity: 0.45 VCC typ.

■ Low output ON resistance: 20Ω typ.
