互补功率晶体管 Complementary Power Transistors
Complementary Power Transistors

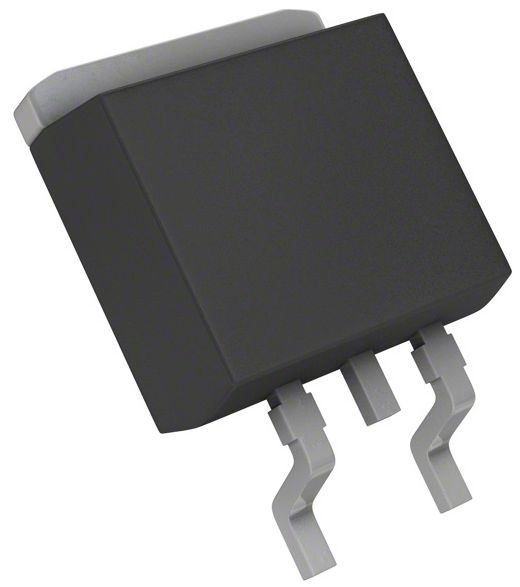

DPAK For Surface Mount Applications
Designed for general purpose amplifier and low speed switching applications.
Features
• Lead Formed for Surface Mount Applications in Plastic Sleeves No Suffix
• Straight Lead Version in Plastic Sleeves “1” Suffix
• Electrically Similar to Popular TIP41 and TIP42 Series
• Monolithic Construction With Built−in Base − Emitter Resistors
• Epoxy Meets UL 94 V−0 @ 0.125 in
• ESD Ratings: Human Body Model, 3B > 8000 V
Machine Model, C > 400 V
• Pb−Free Packages are Available
频率 3 MHz
额定电压DC 100 V
额定电流 6.00 A
针脚数 4
极性 NPN
耗散功率 1.75 W
击穿电压集电极-发射极 100 V
集电极最大允许电流 6A
最小电流放大倍数hFE 15 @3A, 4V
额定功率Max 1.75 W
直流电流增益hFE 30
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 1750 mW
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
材质 Silicon
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MJD41CRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MJD41CT4G 安森美 | 类似代替 | MJD41CRLG和MJD41CT4G的区别 |
MJB41CT4G 安森美 | 类似代替 | MJD41CRLG和MJB41CT4G的区别 |
MJB41CG 安森美 | 类似代替 | MJD41CRLG和MJB41CG的区别 |
