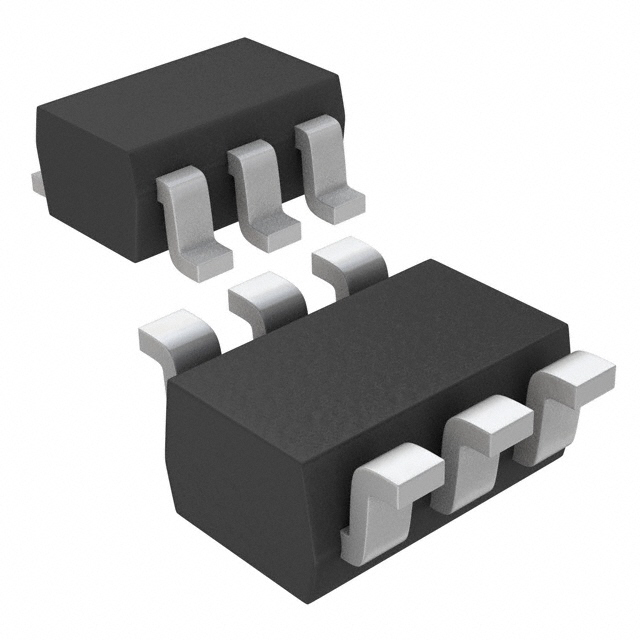

MAX9915EXT+T

MAXIM INTEGRATED PRODUCTS  MAX9915EXT+T  运算放大器, 轨至轨输入输出, 1 MHz, 1个放大器, 0.5 V/µs, 1.8V 至 5.5V, SC-70, 6 引脚

The is a 1MHz, 20µA, rail to rail I/O op-amp with shutdown in 6 pin SC-70 package. It is a single operational amplifier featuring maximized ratio of gain bandwidth to supply current. It is ideal for battery-powered applications such as portable instrumentation, portable medical equipment and wireless handsets. This CMOS op-amp features an ultra low 1pA input bias current, rail to rail inputs and outputs and low 20µA supply current. For additional power conservation, the MAX9915 feature a low power shutdown mode that reduces supply current to 1nA and puts the amplifier outputs in a high-impedance state. It is a unity-gain stable with a 1MHz gain-bandwidth product driving capacitive loads up to 30pF. The capacitive load can be increased to 100pF when the amplifier is configured for a 10V/V gain.

.

Supply voltage range is 1.8V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Low ±200µV input offset voltage

.

Input offset current is ±1pA
