MC100EL1648DTR2G

5 V ECL压控振荡器放大器 5 V ECL Voltage Controlled Oscillator Amplifier

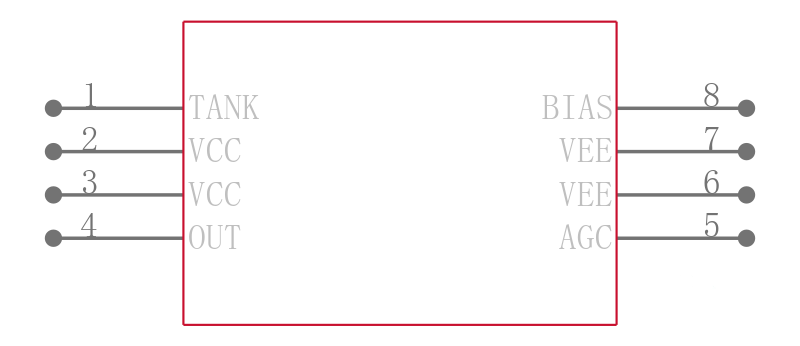

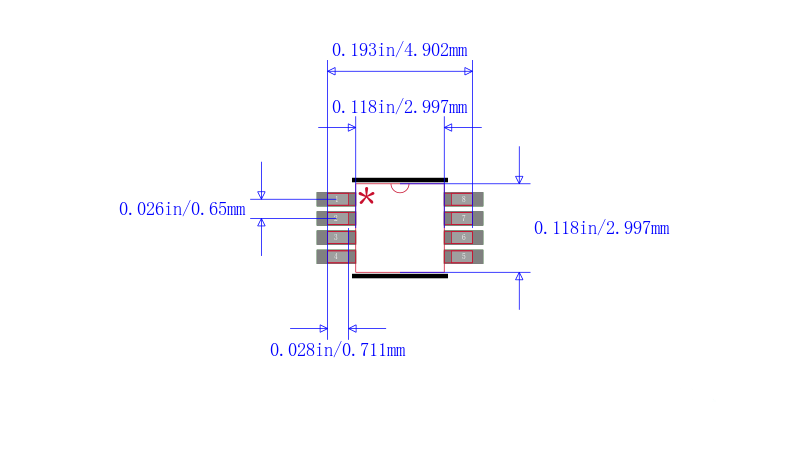

Description

The MC100EL1648 is a voltage controlled oscillator amplifier that requires an external parallel tank circuit consisting of the inductor L and capacitor C. A varactor diode may be incorporated into the tank circuit to provide a voltage variable input for the oscillator VCO. This device may also be used in many other applications requiring a fixed frequency clock.

Features

•Typical Operating Frequency Up to 1100 MHz

•Low−Power 19 mA at 5.0 Vdc Power Supply

•PECL Mode Operating Range: VCC= 4.2 V to 5.5 V with VEE= 0 V

•NECL Mode Operating Range: VCC = 0 V with VEE= −4.2 V to −5.5 V

•Input Capacitance = 6.0 pF TYP

•Pb−Free Packages are Available

  NOTE: The MC100EL1648 is NOT useable as a crystal oscillator.
