3A 至 9A,ON SemiconductorON Semiconductor 系列肖特基二极管可用于快速切换应用。### 标准Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.### 二极管和整流器,ON Semiconductor
肖特基势垒,3A 至 9A,
### 标准
带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
得捷:
DIODE SCHOTTKY 20V 3A DPAK
欧时:
### 肖特基势垒二极管,3A 至 9A,ON Semiconductor### 标准带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。### 二极管和整流器,ON Semiconductor
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode MBRD320T4G rectifier from ON Semiconductor. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its peak non-repetitive surge current is 75 A, while its maximum continuous forward current is 3 A. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single dual anode configuration.
Allied Electronics:

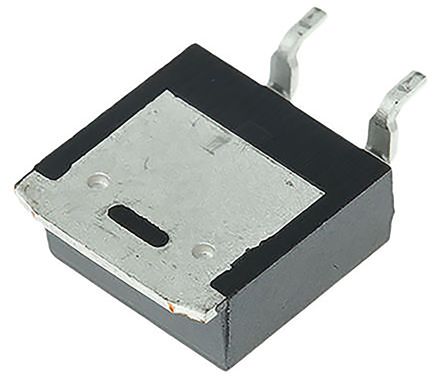

ON Semi MBRD320T4G, SMT Diode, 20V 3A, 3-Pin DPAK
安富利:
Diode Schottky 20V 3A 3-Pin2+Tab DPAK T/R
Chip1Stop:
Diode Schottky 20V 3A 3-Pin2+Tab DPAK T/R
Verical:
Rectifier Diode Schottky 20V 3A 3-Pin2+Tab DPAK T/R
Newark:
# ON SEMICONDUCTOR MBRD320T4G Schottky Rectifier, 20 V, 3 A, Single, TO-252, 4 Pins, 600 mV
Win Source:
DIODE SCHOTTKY 20V 3A DPAK
额定电压DC 4.00 V
额定电流 3.00 A
无卤素状态 Halogen Free
输出电流 ≤3.00 A
正向电压 600mV @3A
极性 Standard
热阻 6℃/W RθJC
反向恢复时间 115 ns
正向电流 3 A
最大正向浪涌电流(Ifsm) 75 A
正向电压Max 600 mV
正向电流Max 3 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.38 mm
封装 TO-252-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBRD320T4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBRD320T4 安森美 | 完全替代 | MBRD320T4G和MBRD320T4的区别 |
MBRD320G 安森美 | 类似代替 | MBRD320T4G和MBRD320G的区别 |
MBRD320RLG 安森美 | 功能相似 | MBRD320T4G和MBRD320RLG的区别 |
