MBRD320RLG

开关模式电源整流器 SWITCHMODE Power Rectifiers

SWITCHMODE™ Power Rectifiers

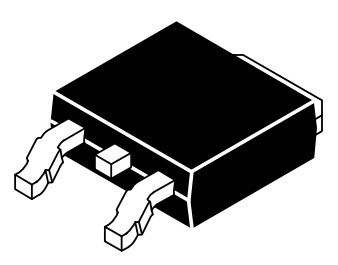

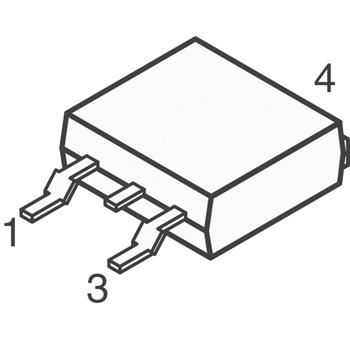

DPAK Surface Mount Package

Designed for use as output rectifiers, free wheeling, protection and steering diodes in switching power supplies, inverters and other inductive switching circuits. These state−of−the−art devices have the following features:

Features

•Pb−Free Packages are Available

•Extremely Fast Switching

•Extremely Low Forward Drop

•Platinum Barrier with Avalanche Guardrings

Mechanical Characteristics

•Case: Epoxy, Molded

•Weight: 0.4 Gram Approximately

•Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

•Lead and Mounting Surface Temperature for Soldering Purposes; 260°C Max. for 10 Seconds

•Shipped 75 Units Per Plastic Tube

•Available in 16 mm Tape and Reel, 2500 Units Per Reel, by Adding a “T4’’ Suffix to the Part  Number
