M48T37Y-70MH1F

M48T 系列 256Kb 32Kb x 8 SOH-44 计时器 SRAM 带10 % VTP 70 ns

Description

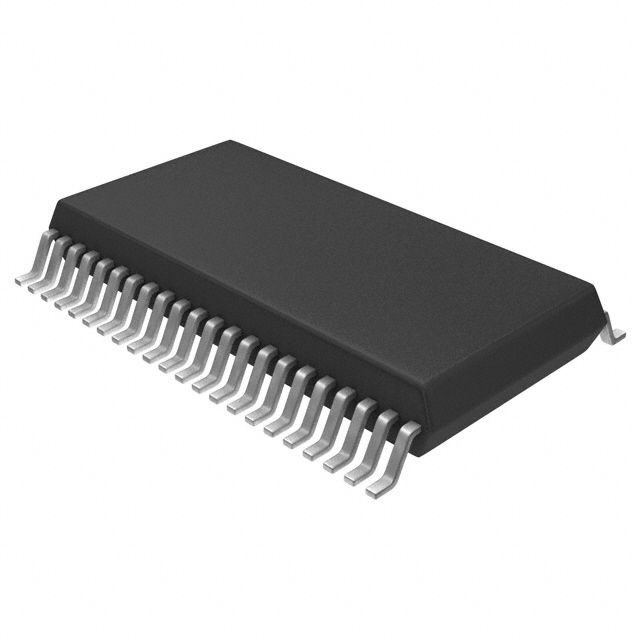

The M48T37Y/V TIMEKEEPER® RAM is a 32 Kb x 8 non-volatile static RAM and real-time clock. The monolithic chip is available in a special package which provides a highly integrated battery-backed memory and real-time clock solution. The 44-lead, 330 mil SOIC package provides sockets with gold-plated contacts at both ends for direct connection to a separate SNAPHAT housing containing the battery and crystal. The unique design allows the SNAPHAT® battery/crystal package to be mounted on top of the SOIC package after the completion of the surface mount process.

Features

■ Integrated ultra low power SRAM, real-time clock, power-fail control circuit, and battery

■ Frequency test output for real-time clock software calibration

■ Automatic power-fail chip deselect and WRITE protection

■ Watchdog timer

■ WRITE protect voltageVPFD= Power-fail deselect voltage:

–M48T37Y: VCC= 4.5 to 5.5 V

  4.2 V ≤VPFD ≤4.5 V

–M48T37V: VCC= 3.0 to 3.6 V

  2.7 V ≤VPFD ≤3.0 V

■ Packaging includes a 44-lead SOIC and SNAPHAT®top to be ordered separately

■ SOIC package provides direct connection for a SNAPHAT®top which contains the battery and

crystal

■ Microprocessor power-on reset valid even during battery backup mode

■ Programmable alarm output active in the battery backup mode

■ Battery low flag

■ RoHS compliant

– Lead-free second level interconnect
