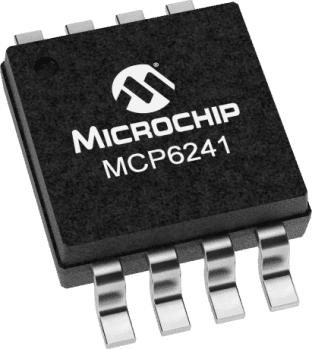

MCP6241T-E/MS

50微安， 650 kHz的轨至轨运算放大器 50 uA, 650 kHz Rail-to-Rail Op Amp

Description

The Technology Inc. MCP6241/1R/1U/2/4 operational amplifiers op amps provide wide bandwidth for the quiescent current. The MCP6241/1R/1U/2/4 has a 550 kHz gain bandwidth product and 68° typical phase margin. This family operates from a single supply voltage as low as 1.8V, while drawing 50 µA typical quiescent current. In addition, the MCP6241/1R/1U/2/4 family supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS – 300 mV. These op amps are designed in one of Microchip’s advanced CMOS processes.

Features

• Gain Bandwidth Product: 550 kHz typical

• Supply Current: IQ = 50 µA typical

• Supply Voltage: 1.8V to 5.5V

• Rail-to-Rail Input/Output

• Extended Temperature Range: -40°C to +125°C

• Available in 5-pin SC-70 and SOT-23 packages

Applications

• Automotive

• Portable Equipment

• Photodiode Transimpedance Amplifier

• Analog Filters

• Notebooks and PDAs

• Battery-Powered Systems
