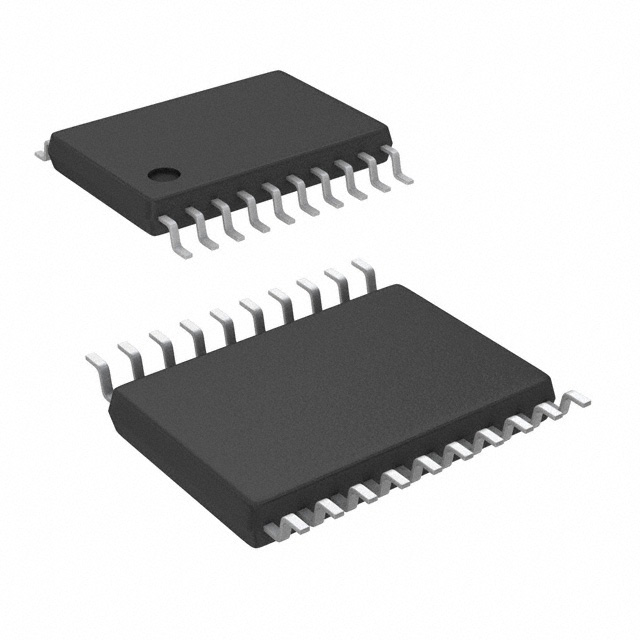

MC100EP40DTR2G图片1
MC100EP40DTR2G图片2
MC100EP40DTR2G图片3
MC100EP40DTR2G图片4
MC100EP40DTR2G图片5
MC100EP40DTR2G图片6
MC100EP40DTR2G图片7
MC100EP40DTR2G概述

MC100EP40 系列 2 GHz 5.5 V ECL 差分 相位-频率检测器-TSSOP-20

The MC100EP40 is a three-state phase-frequency detector intended for phase-locked loop applications which require a minimum amount of phase and frequency difference at lock. Advanced design significantly reduces the dead zone of the detector. For proper operation, the input edge rate of the R and V inputs should be less than 5 ns. The device is designed to work with a 3.3 V / 5 V power supply. When Reference R and Feedback FB inputs are unequal in frequency and/or phase the differential UP U and DOWN D outputs will provide pulse streams which when subtracted and integrated provide an error voltage for control of a VCO. When Reference R and Feedback FB inputs are 80 pS or less in phase difference, the Phase Lock Detect pin will indicate lock by a high state. The Vbar pins offer an internal termination network for 50 line impedance environment shown in Figure 2. An external sinking supply of V pins. If you short the two differential Vbar together, you provide a 100 termination resistance that is compatible with LVDS signal receiver termination. For more information on termination of logic devices, see AND8020. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. V may also rebias AC coupled inputs. When used, decouple V via a 0.01 F capacitor and limit current sourcing or sinkingto 0.5 mA. When not used, V For more information on Phase Lock Loop operation, refer to AND8040. Special considerations are required for differential inputs under No Signal conditio

Features

---

 |

.
Maximum Frequency > 2 Ghz Typical
.
Fully Differential
.
Advanced High Band Output Swing of 400 mV
.
Theoretical Gain = 1.11
.
Trise 97 pS Typical, Ffall 70 pS Typical
.
The 100 Series Contains Temperature Compensation
.
PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V
.
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -5.5 V
.
50Ω Internal Termination Resistor
.
These are Pb-Free Devices
MC100EP40DTR2G中文资料参数规格
技术参数

无卤素状态 Halogen Free

输出接口数 2

电路数 1

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 3V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

长度 6.6 mm

宽度 4.5 mm

高度 1.05 mm

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

MC100EP40DTR2G引脚图与封装图
MC100EP40DTR2G引脚图
MC100EP40DTR2G封装图
MC100EP40DTR2G封装焊盘图
在线购买MC100EP40DTR2G
型号: MC100EP40DTR2G
描述:MC100EP40 系列 2 GHz 5.5 V ECL 差分 相位-频率检测器-TSSOP-20
