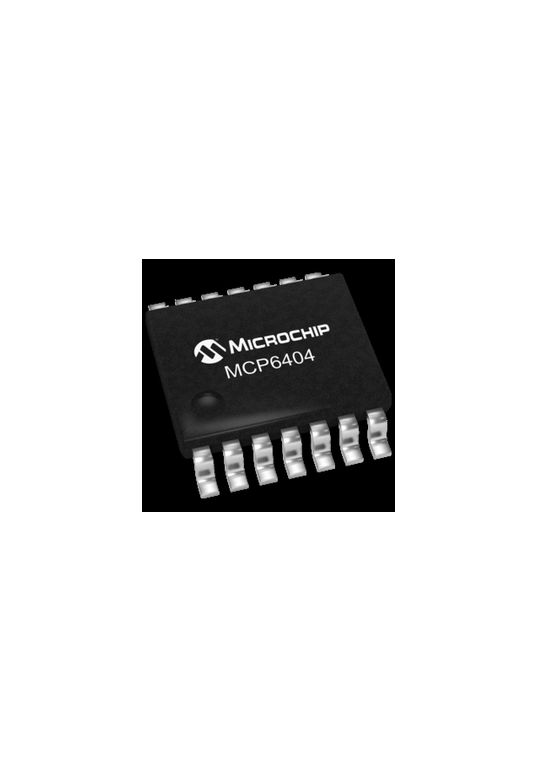

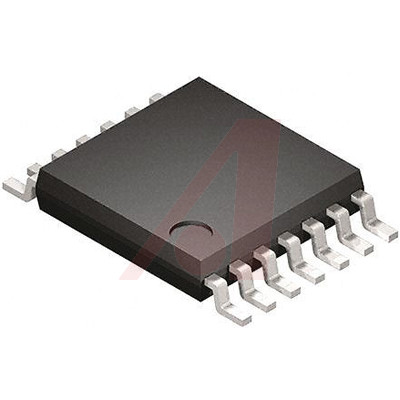

MCP6404 系列 1 MHz 0.5 V/us 6 V 运算放大器 - TSSOP-14
General Purpose Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
得捷:
IC OPAMP GP 4 CIRCUIT 14TSSOP
立创商城:
MCP6404T-E/ST
艾睿:
To increase the amount of gain in your circuit use a multiple number of this general purpose amplifier MCP6404T-E/ST OP amp from Microchip Technology in a cascaded fashion. This op amp has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 4 channels per chip. This device is made with CMOS technology. This device uses a single power supply.
Allied Electronics:
Quad, 1.8V 1MHz, Op, E temp
安富利:
OP Amp Quad GP R-R I/O 6V 14-Pin TSSOP T/R
电源电压DC 1.80V min
输出电流 ≤30 mA
供电电流 45 µA
电路数 4
通道数 4
共模抑制比 63 dB
输入补偿漂移 2.00 µV/K
增益频宽积 1 MHz
输入补偿电压 4.5 mV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 56 dB
电源电压Max 6 V
电源电压Min 1.8 V
安装方式 Surface Mount

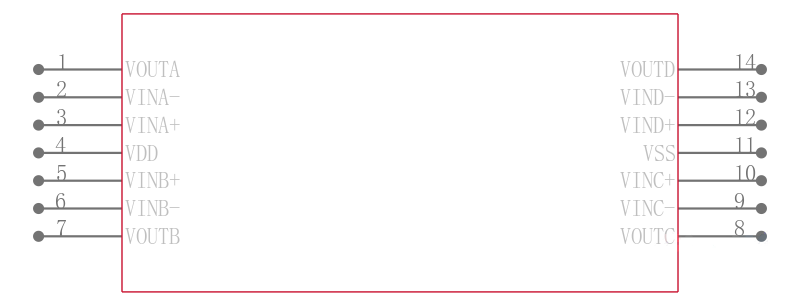

引脚数 14

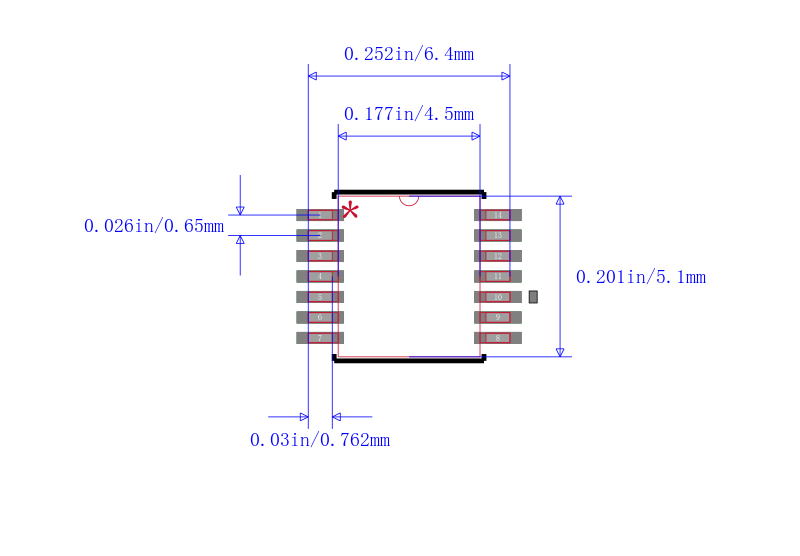

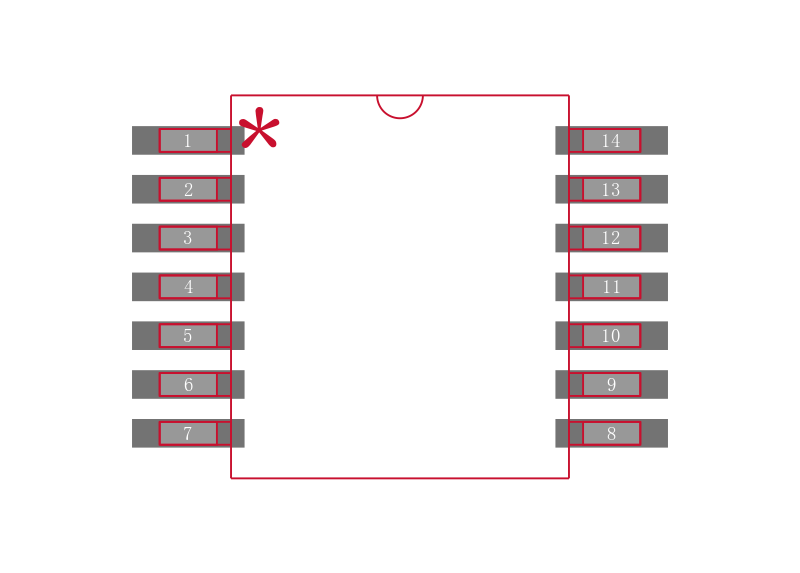

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP6404T-E/ST Microchip 微芯 | 当前型号 | 当前型号 |
MCP6074-E/SL 微芯 | 类似代替 | MCP6404T-E/ST和MCP6074-E/SL的区别 |
MCP6074-E/ST 微芯 | 类似代替 | MCP6404T-E/ST和MCP6074-E/ST的区别 |
MCP6054-E/SL 微芯 | 类似代替 | MCP6404T-E/ST和MCP6054-E/SL的区别 |
