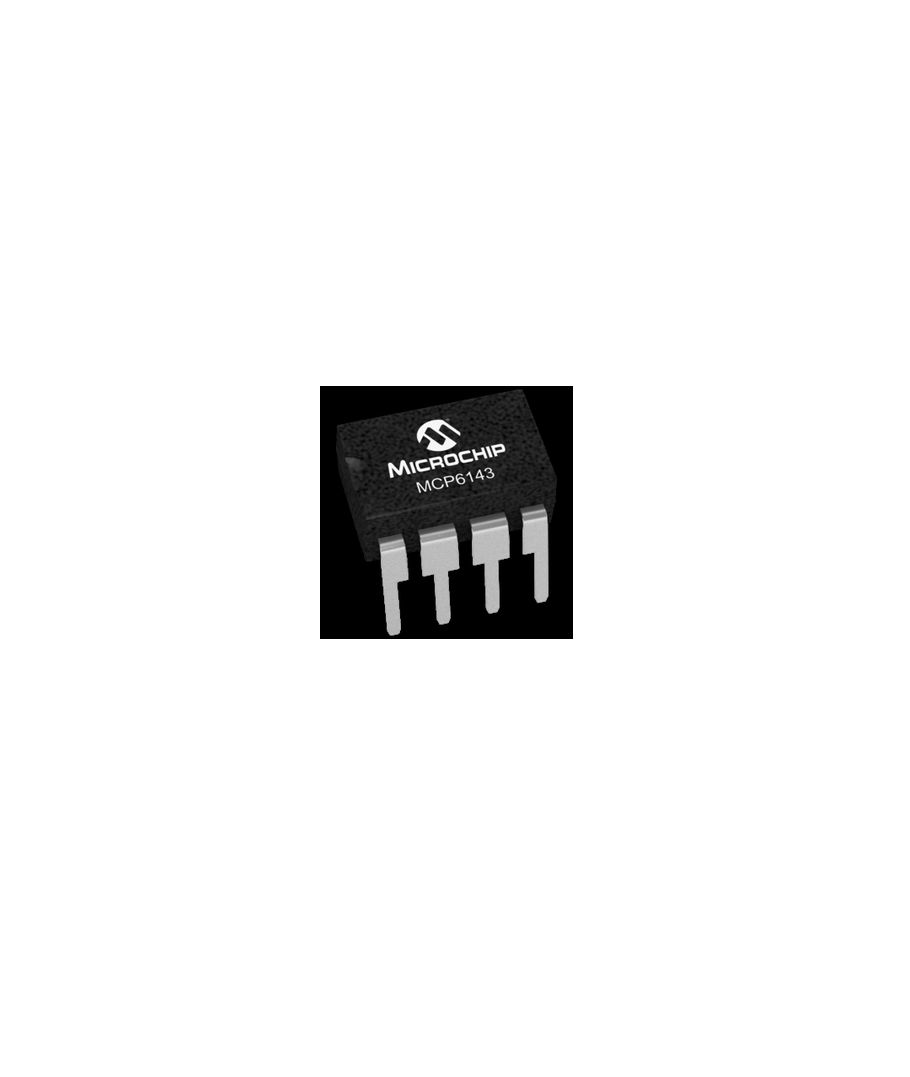

MCP6143T-E/MS

600 nA的，非单位增益，轨到轨输入/输出运算放大器 600 nA, Non-Unity Gain Rail-to-Rail Input/Output Op Amps

Description:

The MCP6141/2/3/4 family of non-unity gain stable operational amplifiers op amps from Technology Inc. operate with a single supply voltage as low as 1.4V, while drawing less than 1 µA maximum of quiescent current per amplifier. These devices are also designed to support rail-to-rail input and output  operation. This combination of features supports battery-powered and portable applications.

Features:

• Low Quiescent Current: 600 nA/amplifier typical

• Gain Bandwidth Product: 100 kHz typical

• Stable for gains of 10 V/V or higher

• Rail-to-Rail Input/Output

• Wide Supply Voltage Range: 1.4V to 6.0V

• Available in Single, Dual, and Quad

• Chip Select CS with MCP6143

• Available in 5-lead and 6-lead SOT-23 Packages

• Temperature Ranges:

\- Industrial: -40°C to +85°C

\- Extended: -40°C to +125°C

Applications:

• Toll Booth Tags

• Wearable Products

• Temperature Measurement

•Battery Powered
