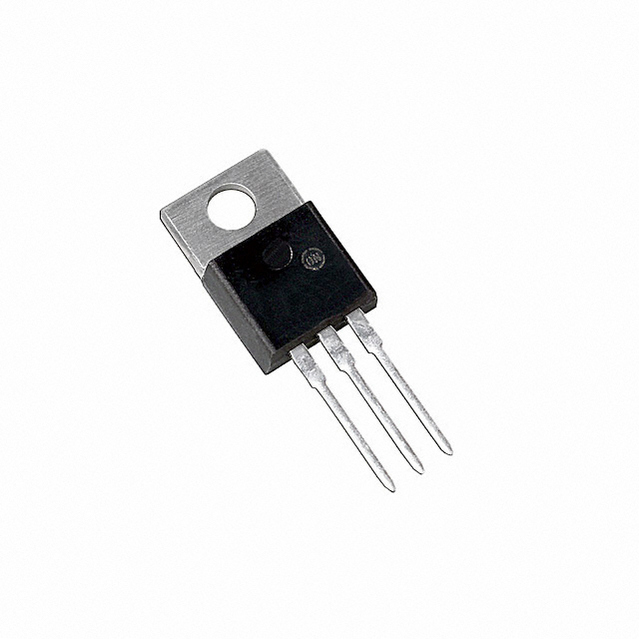

ON SEMICONDUCTOR MUR620CTG 快速/超快二极管, 双共阴极, 200 V, 6 A, 975 mV, 35 ns, 75 A 新
Diode Array 1 Pair Common Cathode Standard 200V 3A Through Hole TO-220-3
得捷:
DIODE ARRAY GP 200V 3A TO220AB
欧时:
REC T0220 6A 200V ULTFST
立创商城:
MUR620CTG
贸泽:
整流器 200V 6A UltraFast
e络盟:
超快速功率整流器
艾睿:
Rectifier Diode Switching 200V 6A 35ns 3-Pin3+Tab TO-220AB Tube
安富利:
The Ultrafast Rectifier is designed for use in switching power supplies, inverters and as free wheeling diodes.
Chip1Stop:
Diode Switching 200V 6A 3-Pin3+Tab TO-220AB Rail
Verical:
Diode Switching 200V 6A 3-Pin3+Tab TO-220AB Rail
Newark:
# ON SEMICONDUCTOR MUR620CTG Fast / Ultrafast Diode, 200 V, 6 A, Dual Common Cathode, 975 mV, 35 ns, 75 A
Win Source:
DIODE ARRAY GP 200V 3A TO220AB
额定电压DC 200 V
额定电流 6.00 A
正向电压 0.975 V
反向恢复时间 35 ns
正向电流 6 A
最大正向浪涌电流(Ifsm) 75 A
正向电压Max 975 mV
正向电流Max 6 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.28 mm
宽度 4.82 mm
高度 9.28 mm
封装 TO-220-3
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MUR620CTG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MUR1620CTG 安森美 | 类似代替 | MUR620CTG和MUR1620CTG的区别 |
MUR1620CTRG 安森美 | 类似代替 | MUR620CTG和MUR1620CTRG的区别 |
MUR1615CTG 安森美 | 类似代替 | MUR620CTG和MUR1615CTG的区别 |
