MAC12MG

ON Semiconductor### 三端双向可控硅开关元件三端双向可控硅开关元件系列（三极管用于交流电，也称为双向闸流晶体管）。 它们用于交流切换和控制应用，电流额定值 1A 至 40A 有效值。 三端双向可控硅开关元件成为用于交流电路方便的开关。

Designed for high performance full−wave ac control applications where high noise immunity and commutating di/dt are required.

Features

•Blocking Voltage to 800 Volts

•On−State Current Rating of 12 Amperes RMS at 70°C

•Uniform Gate Trigger Currents in Three Quadrants, Q1, Q2, and Q3

•High Immunity to dv/dt − 250 V/s Minimum at 125°C

•High Commutating di/dt − 6.5 A/ms Minimum at 125°C

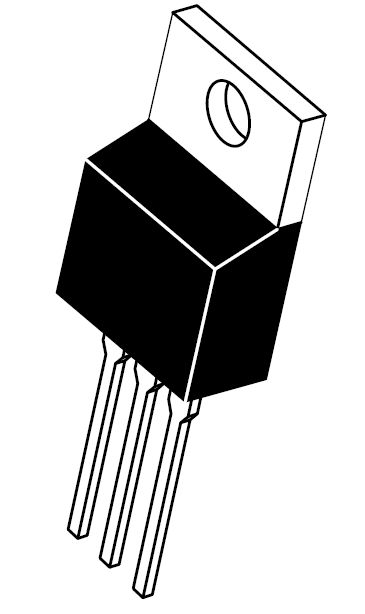

•Industry Standard TO−220 AB Package

•High Surge Current Capability − 100 Amperes

•Pb−Free Packages are Available
