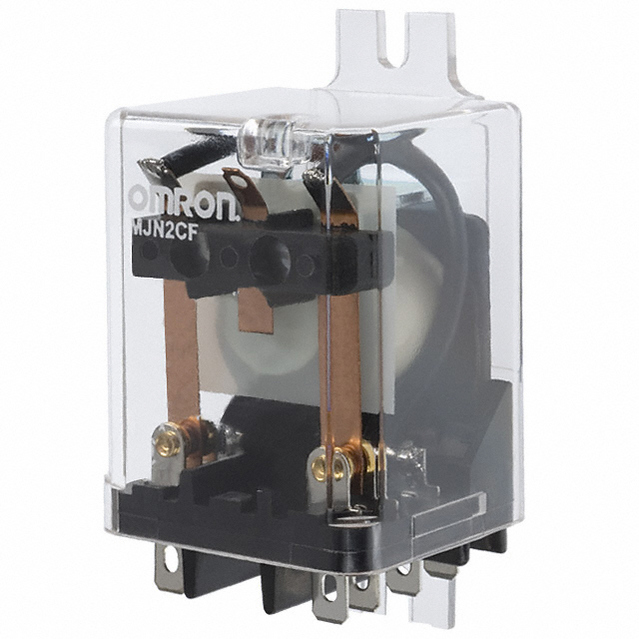

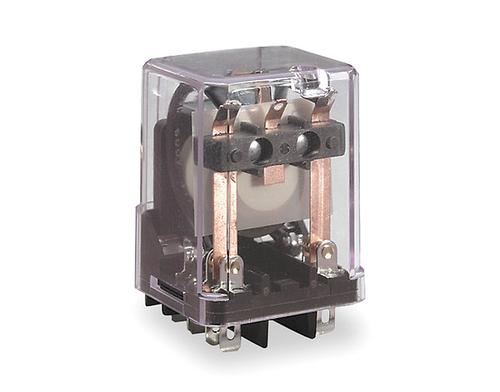

Electromechanical Relay 120VAC 2.25KΩ 10A DPDT 38.73mm 35.56mm 73.66mm Plug-In General Purpose Relay
MJN series is UL and CSA approved. Ideal for multiple applications such as motor loads, lighting loads and resistive loads. 3/16" dia. Ag alloy contacts, Industry standard contact configuration — DPDT and 3PDT, standard model contact rating of 10 A and models with "E" rated for 20 A. Two mounting options available — socket and flange mount. UL contact rating 10 A @ 28 VDC and 120/240 VAC at 80% pf, 1/3 HP @ 120 VAC, 1/2 HP @ 277/240/600 VAC. Terminals can be socket mounted or soldered. 10 Amp — Terminals 0.187", 20 Amp and 30 Amp — Terminal 0.25". Life Expectancy: Electrical — 100,000 operations; Mechanical — 10,000,000.
**Features**
* Rugged Power Driver Offers Superior 3/16" Through-Air and 3/8" Over-Surface Spacing
* Interlocked Frame and Contact Block Prevent Contact Misalignment During Plug-In
* Dust Covered Available with Indicator Lamps and "Push-to-Test" Buttons
* UL and CSA Recognition as a Motor Controllers Through 600 VAC
* Recognized For 1/2 HP Motor Controller Applications at 240/480/600 VAC — 1/3 HP @ 120 VAC
* UL and CSA Approved
额定电压DC 28 V
额定电压AC 600 V
额定电流 10 A
额定功率 1.70 W
触点类型 DPDT
功耗 1.7 VA
触点额定电流 10 A
线圈电压 120 VAC
线圈电流 14.2 mA
线圈电压AC 120 V
线圈电阻 2.25 KΩ
载流 10.0 A
工作温度Max 60 ℃
工作温度Min -45 ℃
额定电压 240 VAC
安装方式 Flange, Solder
引脚数 8
封装 120
长度 38.73 mm
宽度 35.56 mm
高度 73.66 mm
封装 120
触点材质 Silver
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MJN2CF-AC120 Omron 欧姆龙 | 当前型号 | 当前型号 |
KUP-11A55-120 泰科 | 功能相似 | MJN2CF-AC120和KUP-11A55-120的区别 |
