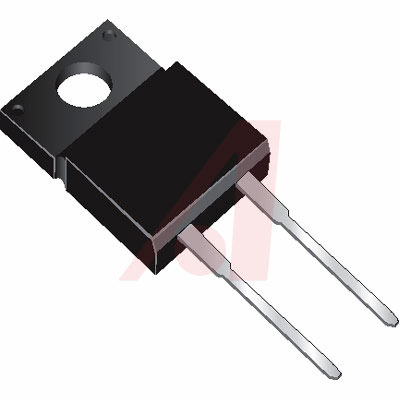

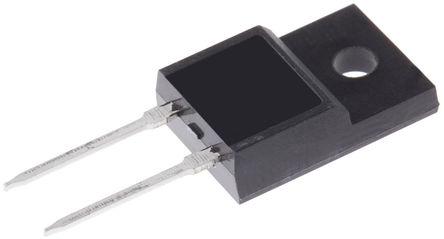

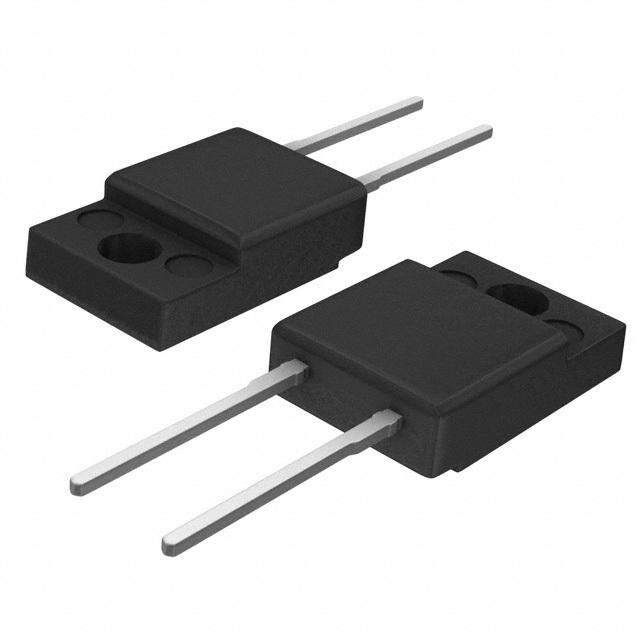

VISHAY MBRF10H100-E3/45 肖特基整流器
The is a high-voltage Schottky Rectifier with solderable matte-tin plated terminals. It is suitable for use in high frequency rectifier of switching mode power supplies, free-wheeling diodes, DC/DC converters or polarity protection application.
- .
- High barrier technology for improved high temperature performance
- .
- Power pack
- .
- Guard-ring for overvoltage protection
- .
- Low power loss, high efficiency
- .
- Low forward voltage drop
- .
- Low leakage current
- .
- High forward surge capability
- .
- High frequency operation
- .
- AEC-Q101 qualified
- .
- UL94V-0 Flammability rating
- .
- 275°C/10-second Maximum solder bath temperature as per JESD 22-B106
针脚数 2
正向电压 0.71 V
热阻 5.8℃/W RθJC
正向电流 10 A
最大正向浪涌电流（Ifsm） 250 A
正向电压Max 880 mV
正向电流Max 10 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.26 mm
宽度 4.83 mm
高度 9.14 mm
封装 TO-220-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Automotive, Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MBRF10H100-E3/45 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MBRF10H90-E3/45 威世 | 类似代替 | MBRF10H100-E3/45和MBRF10H90-E3/45的区别 |
MBRF10H100HE3/45 威世 | 功能相似 | MBRF10H100-E3/45和MBRF10H100HE3/45的区别 |
