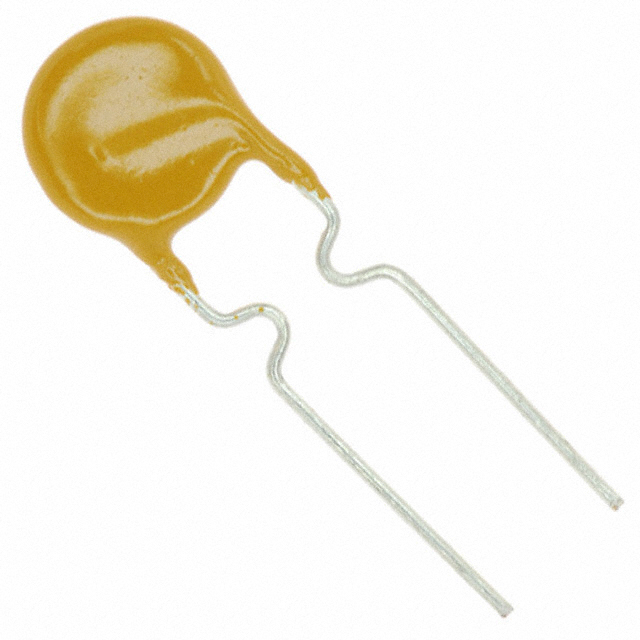

PTC Resettable Fuse 0.3Ahold 0.6Atrip 60V 40A 0.5W1/2W 3s 0.76Ω Radial 7.4 X 3.1mm T/R Automotive
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from Bourns! This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 3.1Max mm deep. This product"s terminal pitch is 5.1nom mm.
跳闸时间 3 s
耗散功率 0.5 W
电阻 1.36 Ω
保持电流 0.3 A
跳闸电流 0.6 A
额定电流Max 40 A
保持电流Max 300 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 7.4 mm
宽度 3.1 mm
高度 13.4 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Last Time Buy
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536100040
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MF-R030-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-R030 伯恩斯 | 类似代替 | MF-R030-2-99和MF-R030的区别 |
MF-R030-2 伯恩斯 | 类似代替 | MF-R030-2-99和MF-R030-2的区别 |
MF-R030-0-99 伯恩斯 | 类似代替 | MF-R030-2-99和MF-R030-0-99的区别 |
