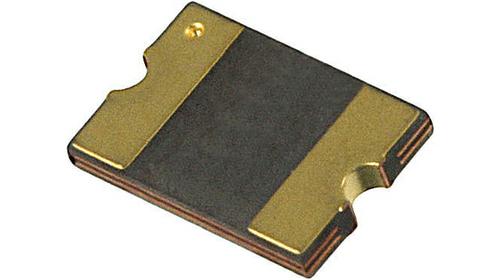

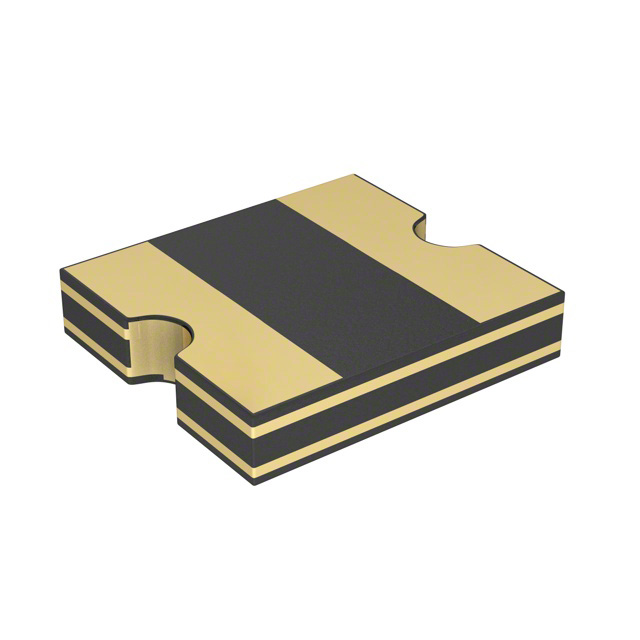

BOURNS MF-SMDF200-2 自复式保险丝, PTC, 10V, 2A, SMD
Avoid delays in resuming normal operation with this PTC resettable fuse from Bourns. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 5.44Max mm long, 0.85Max mm tall and 4.93Max mm deep.
额定电压DC 10.0 V
工作电压 10 V
跳闸时间 2.4 s
额定电流 2.00 A
耗散功率 1.1 W
电阻 0.1 Ω
保持电流 2 A
跳闸电流 4 A
额定电流Max 40 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 10 V
额定电压 10 V
工作电压Max 10 V
安装方式 Surface Mount
封装 5045
长度 5.44 mm
宽度 4.93 mm
高度 0.85 mm
封装 5045
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-SMDF200-2 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2016L200PR 力特 | 功能相似 | MF-SMDF200-2和2016L200PR的区别 |
