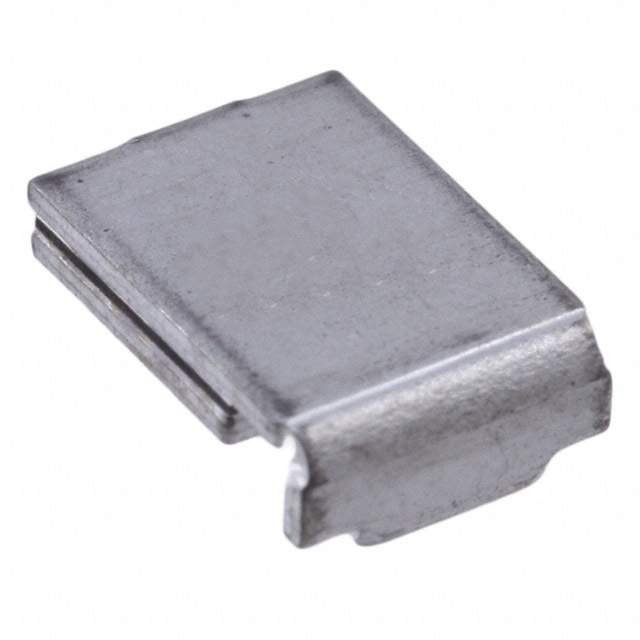

自恢复保险丝—PPTC 2.5A 15V
In the event of overcurrent or short, your circuit can resume normal operation with this positive temperature coefficient device from Bourns, without the need to replace any fuses. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 9.5Max mm long, 3Max mm tall and 6.71Max mm deep.
额定电压DC 15.0 V
额定电压AC 15.0 V
工作电压 15 VDC
跳闸时间 25 s
额定电流 2.50 A
耗散功率 1.9 W
电阻 0.085 Ω
保持电流 2.5 A
跳闸电流 5 A
额定电流Max 100 A
保持电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 15 V
额定电压 15 V
安装方式 Surface Mount
封装 SMD-2
长度 9.5 mm
宽度 6.71 mm
高度 3 mm
脚长度 0.43 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-SM250-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-SM250-2 伯恩斯 | 类似代替 | MF-SM250-2-99和MF-SM250-2的区别 |
SMD250 泰科 | 功能相似 | MF-SM250-2-99和SMD250的区别 |
ASMD250 泰科 | 功能相似 | MF-SM250-2-99和ASMD250的区别 |
