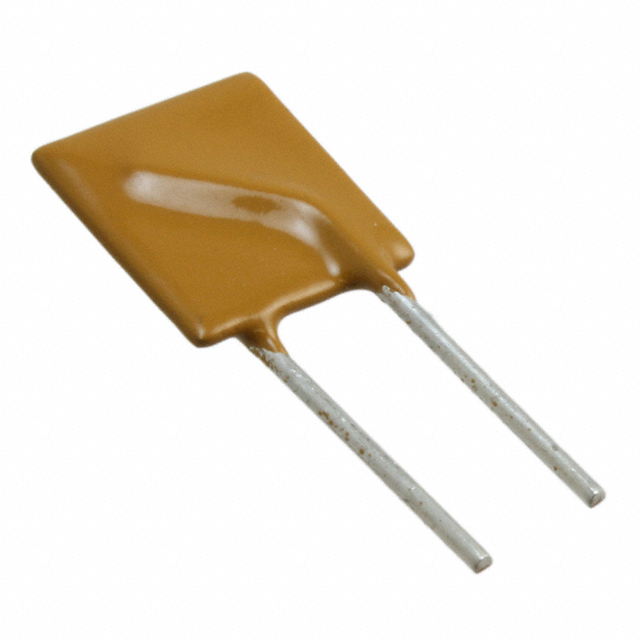

PTC Resettable Fuse 1.1Ahold 2.2Atrip 72V 40A 1.5W 8.2s 0.15Ω Radial 10.84 X 3.1 X 16.84mm T/R
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from Bourns is perfect for you! This device has a maximum current rating of 40. This part has a lead diameter of 0.81 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product is 10.84Max mm long, 16.84Max mm tall and 3.1Max mm deep. This product"s terminal pitch is 5.1nom mm.
跳闸时间 8.2 s
耗散功率 1.5 W
电阻 0.25 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 40 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 72 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 16.8 mm
宽度 10.84 mm
高度 16.84 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536100040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-RX110/72-2 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-RX110/72-0 伯恩斯 | 完全替代 | MF-RX110/72-2和MF-RX110/72-0的区别 |
MF-RX110/72-AP 伯恩斯 | 完全替代 | MF-RX110/72-2和MF-RX110/72-AP的区别 |
PFRX.110 Schurter | 类似代替 | MF-RX110/72-2和PFRX.110的区别 |
