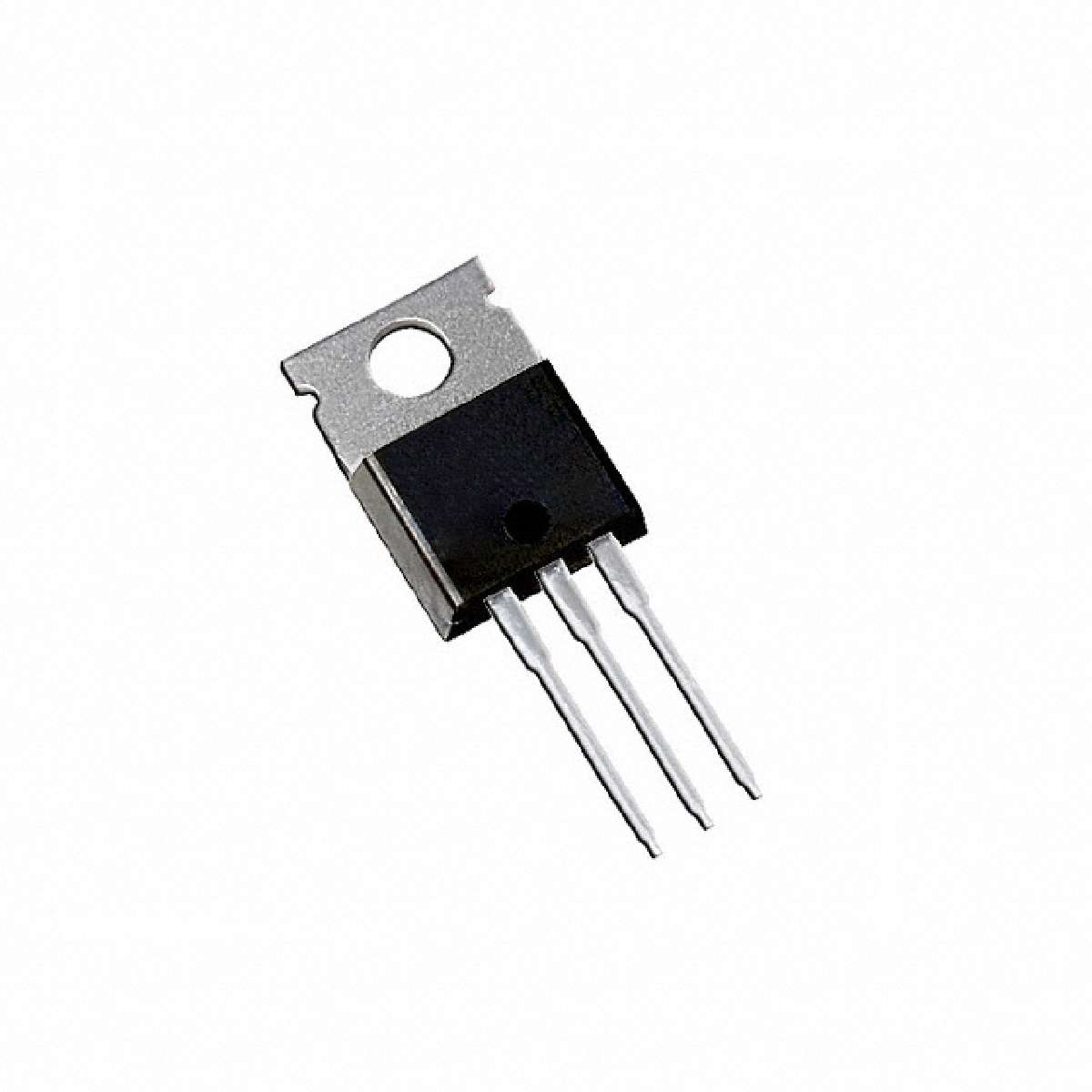

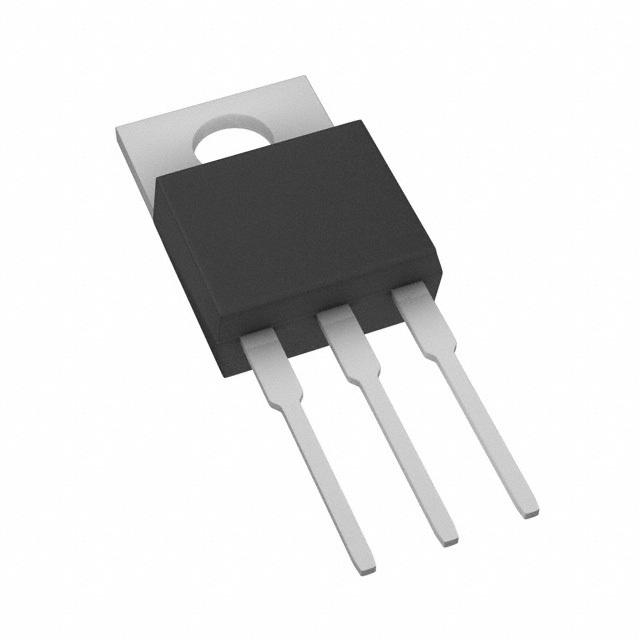

MBR30H100CTHE3/45

双共阴极高压肖特基整流器 Dual Common-Cathode High-Voltage Schottky Rectifier

Dual Common Cathode High Voltage Schottky Rectifier

High Barrier Technology for Improved High Temperature Performance

FEATURES

• Power pack

• Guardring for overvoltage protection

• Low power loss, high efficiency

• Low forward voltage drop

• Low leakage current

• High forward surge capability

• High frequency operation

• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C for TO-263AB package

• Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 for TO-220AB and ITO-220AB package

• AEC-Q101 qualified

• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection application.
