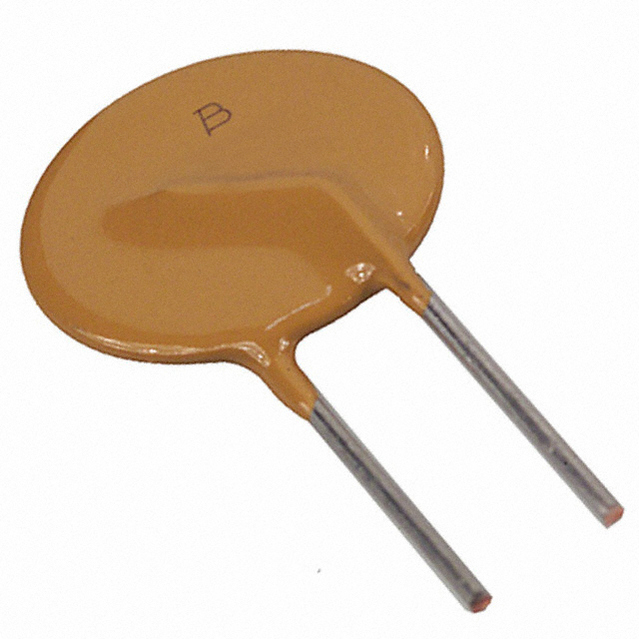

PTC Resettable Fuse 1.85Ahold 3.7Atrip 60V 40A 2.1W 12.6s 0.08Ω Radial 17.8 X 3.1mm Bulk
This PTC resettable fuse from Bourns is an alternative to replacing burned out fuses. This device has a maximum current rating of 40. This part has a lead diameter of 0.81 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1nom mm. This product is 3.1Max mm deep.
得捷:
PTC RESET FUSE 60V 1.85A RADIAL
艾睿:
This MF-RX185-0-99 PTC resettable fuse from Bourns is an alternative to replacing burned out fuses. This device has a maximum current rating of 40. This part has a lead diameter of 0.81 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product&s;s terminal pitch is 5.1nom mm. This product is 3.1Max mm deep.
Chip1Stop:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 60V 40A 2.1W 12.6s 0.08Ohm Radial 17.8 X 3.1mm Bulk Automotive
Verical:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 60V 40A 2.1W 12.6s 0.08Ohm Radial 17.8 X 3.1mm Bag Automotive
Newark:
# BOURNS MF-RX185-0-99 PPTC Resettable Fuse, Through Hole, MF-RX Series, 1.85 A, 3.7 A, 60 V, -40 °C
额定电压DC 60.0 V
工作电压 60 VDC
跳闸时间 12.6 s
耗散功率 2.1 W
电阻 0.12 Ω
保持电流 1.85 A
跳闸电流 3.7 A
额定电流Max 40 A
保持电流Max 1.85 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 V
额定电压 60 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 17.8 mm
宽度 3.1 mm
高度 22.9 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-RX185-0-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-RX185 伯恩斯 | 类似代替 | MF-RX185-0-99和MF-RX185的区别 |
MF-RX185-2 伯恩斯 | 类似代替 | MF-RX185-0-99和MF-RX185-2的区别 |
