MB2011SB3G03-DA

MB2011SB3G03-DA图片1

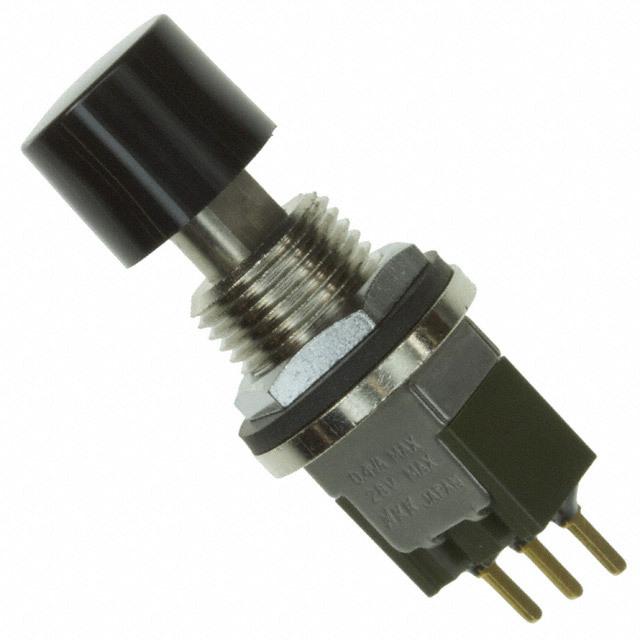

MB2011SB3G03-DA图片2

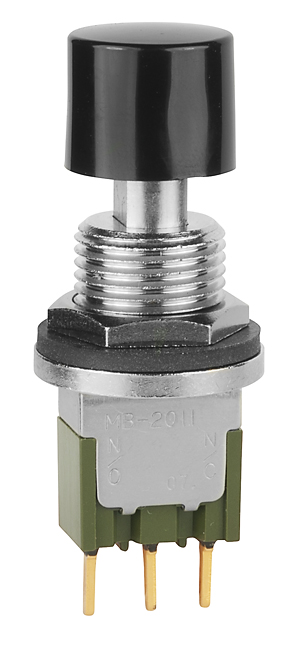

MB2011SB3G03-DA图片3
MB2011SB3G03-DA图片4
MB2011SB3G03-DA概述

Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole

is manufactured by Switches and is categorized in the Pushbutton Switches category. MB2011SB3G03-DA is described as SWITCH PUSH SPDT 0.4VA 28V. Perfect Parts is a supplier of Switches and other Electromechanicals.


得捷:
SWITCH PUSH SPDT 0.4VA 28V


立创商城:
MB2011SB3G03-DA


艾睿:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole


Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole


Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION


MB2011SB3G03-DA中文资料参数规格
技术参数

额定电压DC 28 V

额定电压AC 28 V

排数 1

额定电流Max 0.1A @28VAC, 28VDC

工作温度Max 85 ℃

工作温度Min -30 ℃

接触电阻Max 20 mΩ

封装参数

安装方式 PC Board, Panel

封装 -

外形尺寸

长度 13.2 mm

宽度 13.2 mm

高度 46.35 mm

封装 -

物理参数

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买MB2011SB3G03-DA
型号: MB2011SB3G03-DA
制造商: NKK 日本长野
描述:Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
