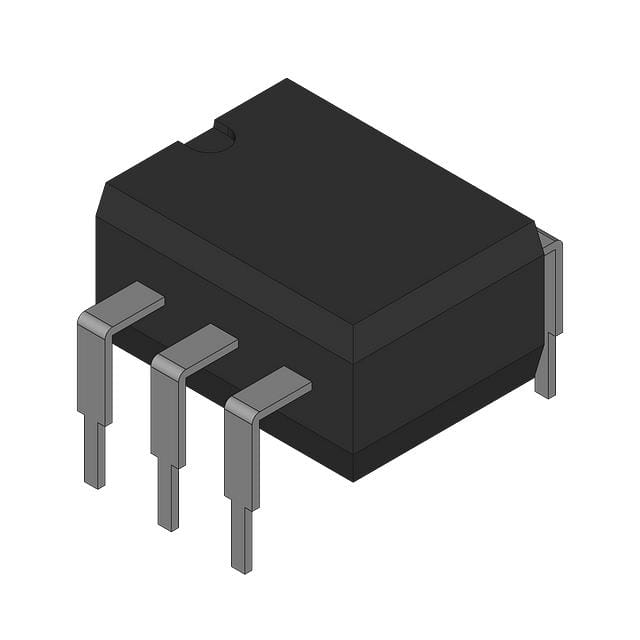

6引脚DIP光耦合器电源应用（没有基连接） 6-PIN DIP OPTOCOUPLERS FOR POWER SUPPLY APPLICATIONS NO BASE CONNECTION
DESCRIPTION
The MOC811X series consists of a Gallium Arsenide IRED coupled with an NPN phototransistor. The base of the transistor is not bonded to an external pin for improved noise immunity
FEATURES
• High isolation voltage 5300 VAC RMS—1 minute
• High BVCEOminimum 70 Volts
• Current transfer ratio in selected groups:
: 20% min.
MOC8112: 50% min.
MOC8113: 100% min.
• Maximum switching time in saturation specified
• Underwriters Laboratory UL recognized File #E90700
• VDE recognized File #94766
APPLICATIONS
•Power Supply Regulators
• Digital Logic Inputs
• Microprocessor Inputs
• Appliance Sensor Systems
• Industrial Controls
额定电压DC 5.00 V
上升/下降时间 2µs, 11µs
输入电压DC 1.35 V
输出电压 70 V
电路数 1
通道数 1
正向电压 1.15 V
耗散功率 260 mW
上升时间 2 µs
隔离电压 5300 Vrms
正向电流 90 mA
输出电压Max 70 V
正向电压Max 1.65 V
正向电流Max 90 mA
下降时间 11 µs
下降时间Max 20 µs
上升时间Max 4 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 260 mW
安装方式 Through Hole
引脚数 6
封装 DIP-6
封装 DIP-6
工作温度 -55℃ ~ 100℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
