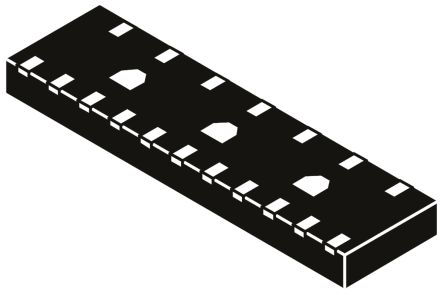

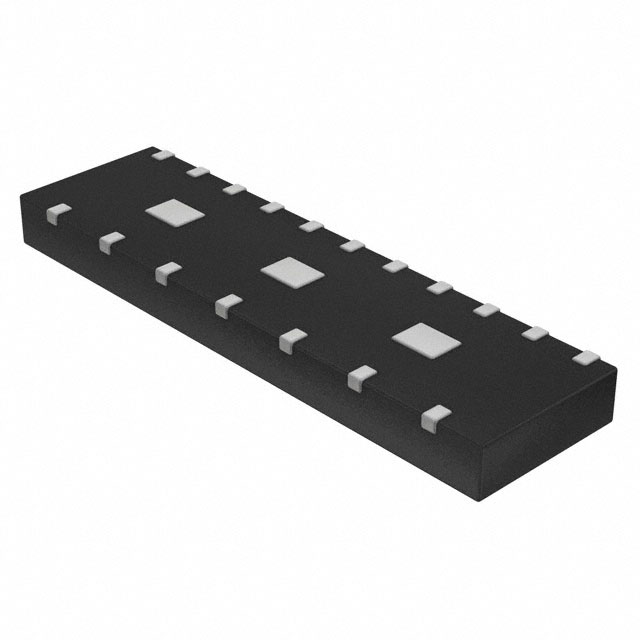

ON SEMICONDUCTOR MG2040MUTAG 静电保护装置, 15.3 V, UDFN, 18 引脚, 5 V 新
HDMI 发射器端口保护和接口
### 瞬态电压抑制器,On Semiconductor
欧时:
TVS 二极管 ON Semiconductor MG2040MUTAG 单向, 10V, 18针 U-DFN5515封装
得捷:
TVS DIODE 5VWM 10VC 18UDFN
立创商城:
MG2040MUTAG
艾睿:
Have expensive equipment to protect from ESD? Add this diode array MG2040MUTAG ESD protection device manufactured from ON Semiconductor. This device&s;s maximum clamping voltage is 10 V. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±15@Contact Disc kV. This ESD diode has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a array 14 configuration.
安富利:
ESD Suppressor TVS ±15KV 18-Pin UDFN T/R
Chip1Stop:
ESD Suppressor Diode Arrays ±15kV Automotive 18-Pin UDFN T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5V 18-Pin UDFN T/R
Newark:
# ON SEMICONDUCTOR MG2040MUTAG ESD Protection Device, 10 V, UDFN, 18 Pins, 5 V
力源芯城:
低电容ESD保护阵列
Win Source:
TVS DIODE 5VWM 10VC 18UDFN
工作电压 5 V
无卤素状态 Halogen Free
针脚数 18
钳位电压 10 V
测试电流 1 mA
最小反向击穿电压 5.5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 18
封装 UDFN-18
长度 5.5 mm
宽度 1.5 mm
高度 0.5 mm
封装 UDFN-18
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级,HDMI
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MG2040MUTAG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SZMG2040MUTAG 安森美 | 完全替代 | MG2040MUTAG和SZMG2040MUTAG的区别 |
