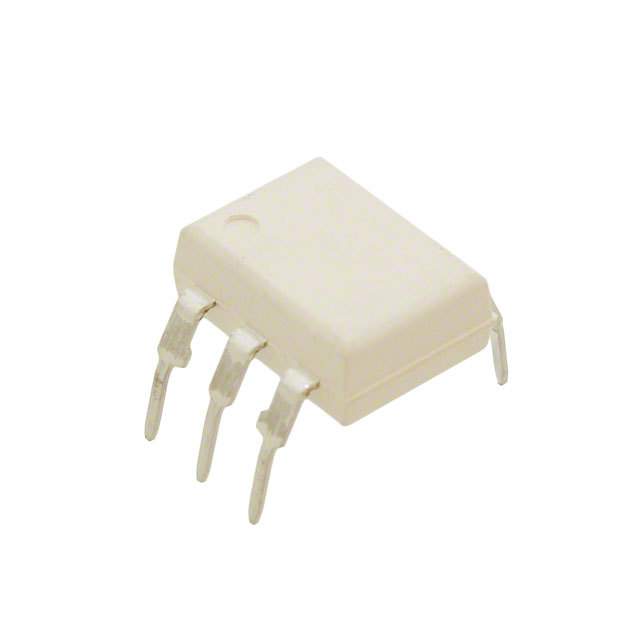

MOC8080300W

晶体管输出光电耦合器 6pin Optocoupler Photodarlington

DESCRIPTION

The CNX48U, H11BX, MOC8080 and TIL113 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

FEATURES

• High sensitivity to low input drive current

• Meets or exceeds all JEDEC Registered Specifications

• VDE 0884 approval available as a test option - add option .300. e.g., H11B1.300

APPLICATIONS

• Low power logic circuits

• Telecommunications equipment

• Portable electronics

• Solid state relays

• Interfacing coupling systems of different potentials and impedances.
