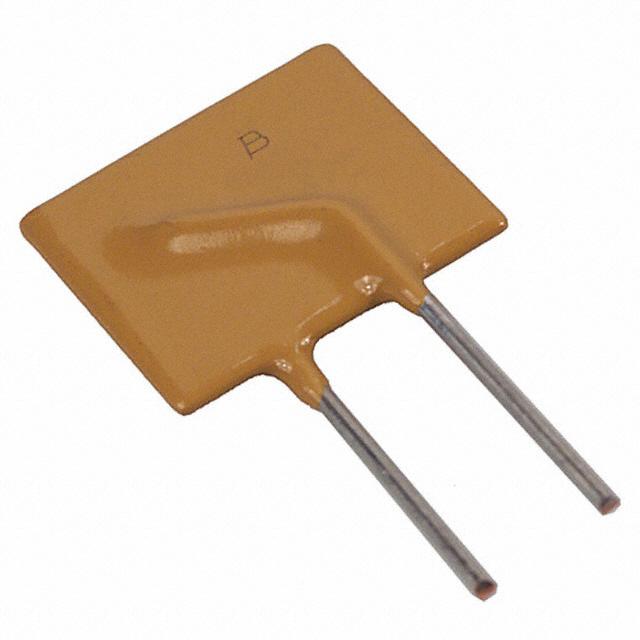

PTC Resettable Fuse 9Ahold 18Atrip 30V 40A 4.2W 20s 0.005Ω Radial 24.2 X 3 X 32.9mm T/R Automotive
With this PTC resettable fuse from Bourns you will no longer have to replace a fuse when it burns out. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 10.2nom mm. This product is 24.2Max mm long, 32.9Max mm tall and 3Max mm deep.
跳闸时间 20 s
耗散功率 4.2 W
电阻 0.01 Ω
保持电流 9 A
跳闸电流 18 A
额定电流Max 40 A
保持电流Max 9 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 24.2 mm
宽度 3 mm
高度 32.9 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-R900-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-R900 伯恩斯 | 完全替代 | MF-R900-2-99和MF-R900的区别 |
MF-R900-0-99 伯恩斯 | 完全替代 | MF-R900-2-99和MF-R900-0-99的区别 |
