MG 系列 22 V 550 pF 表面贴装 MultiGuard TVS 阵列
变阻器 电路 表面贴装，MLCV 0612（1632 公制）
艾睿:
Never worry about improper resistance being seen by your components with this MG064S09A200DP MOV from AVX, it will change depending on voltages. This device&s;s clamping current is 1 A and clamping voltage is 22 V. Its maximum surge current is 30 A. This part has a pitch of 0.76 mm. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its tolerance voltage is 15%. This product is 1.6 mm long, 1.22 mm tall and 3.2 mm deep. This varistor has a voltage of 12.7 V. The maximum AC voltage rating is 6.4 VAC and the maximum DC voltage rating is 9 VDC. This device utilizes multilayer technology. Its capacitance value is 550pF.
安富利:
Var MLV 6.4VAC/9VDC 30A 12.7V 0612 SMD T/R
Chip1Stop:
Var MLV 6.4VAC/9VDC 30A 12.7V 0612 SMD T/R
Verical:
Var MLV 6.4VAC/9VDC 30A 12.7V 0612 SMD T/R
Newark:
# AVX MG064S09A200DP TVS Varistor, 6.4 V, 9 V, MultiGuard Series, 22 V, 0612, Multilayer Varistor MLV
额定电压DC 9 V
额定电压AC 6.4 V
电容 550 pF
击穿电压 12.7 V

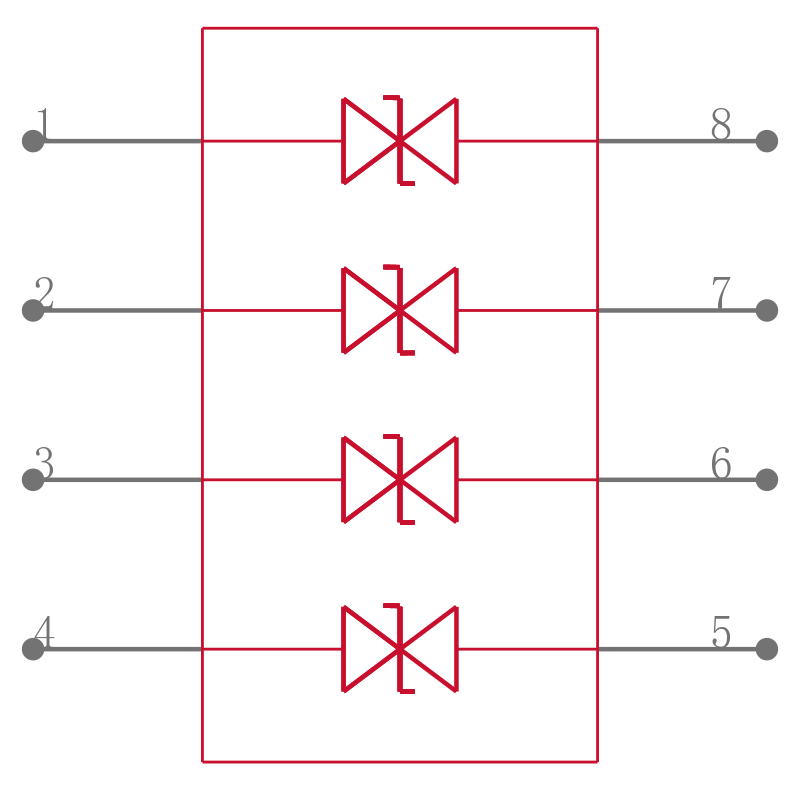

电路数 4
钳位电压 22 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 9 V
额定电压AC Max 6.4 V
安装方式 Surface Mount
引脚数 8
封装 0612
长度 1.6 mm
宽度 3.2 mm
高度 1.22 mm
封装 0612
厚度 1.22 mm
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
