DO-215AA 58V 600W

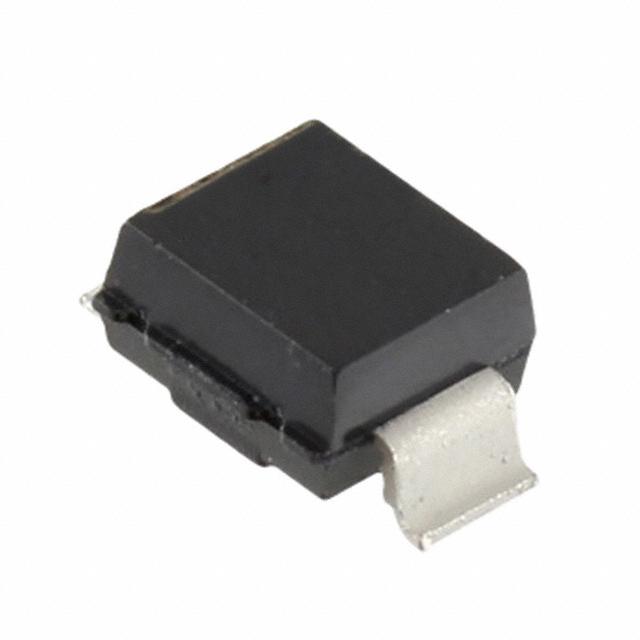

The MSMB5.0A - MSMB170CA series of surface mount 600 watt transient voltage suppressors provide a selection of stanfoff voltage Vwm from 5.0 to 170 V. These high-reliablity devices are available in either unidirectional or bidirectional versions. The SMBG Gull-wing design in the DO-215AA package is ideal for visible solder connections. The SMBJ J-design in the DO-214AA package allows for greater PC board mounting density. It is available with SnPb or RoHS compliant matte-tin plating.
立创商城:
Vrwm:58V 600W
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this MSMBG58CA TVS diode from Microsemi. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 93.6 V and minimum breakdown voltage is 64.4 V. This TVS diode has an operating temperature range of -65 °C to 150 °C.
