MSMLJ45CA

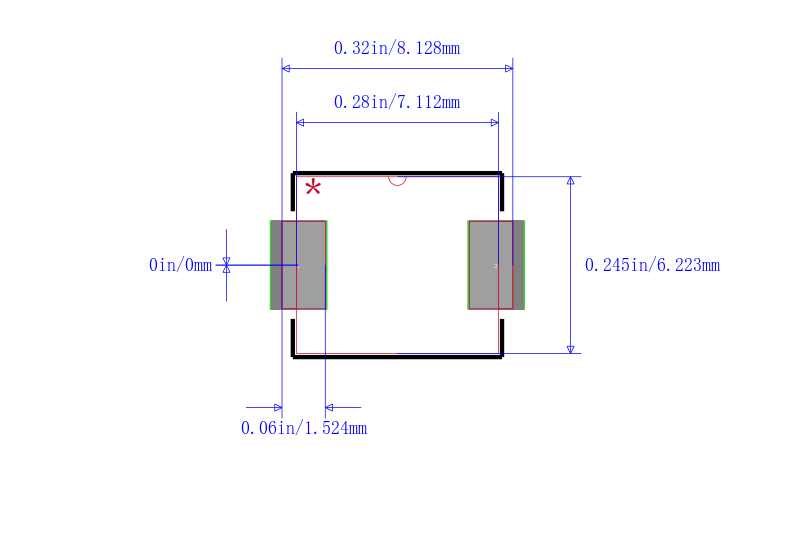

DO-214AB 45V 3000W

**SURFACE MOUNT, 3000 Watt, Transient Voltage Suppressor**

.

High Reliability controlled devices

.

Unidirectional and Bidirectional construction

.

Available in both J-bend and Gull-wing terminations

.

Selections for 5.0 to 170 V standoff voltages Vwm

立创商城:
Vrwm:45V 3kW

艾睿:
Take the extra step in your circuitry by implementing surge protection with this MSMLJ45CA TVS diode from Microsemi. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. Its maximum leakage current is 2 μA. Its test current is 1 mA. Its peak pulse power dissipation is 3000 W. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
