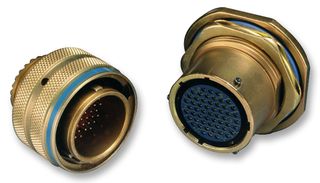

MS27468E9B98P

Conn Subminiature Circular PIN 3POS Crimp ST Jam Nut 3 Terminal 1Port

The from is MIL-DTL-38999 Series I jam nut receptacle with 3 contacts. MIL-DTL-38999 Series I connectors are available in a wide range of shell materials and finishes with 48, 500 and 1000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It has an improved sealing around each contact to prevent electrolytic erosion. These connectors are available in 9 shell size from 9 to 25 and are designed to withstand extreme shock, exposure and vibration.

.

High reliability, moisture and corrosion resistant

.

Outstanding EMI, RFI shielding protection 100MHz to 10GHz at attenuation of 50dB

.

500 mating cycles, IP67 environmental protection

.

Operates at extreme temperature range of -65°C to +200°C

.

Minimum insulation resistance is 5000Mohm

.

Scoop proof to eliminate the possibility of contact damage

.

Quick mating, three-point bayonet coupling and 5 key/keyway mating

.

Self locking connector system, breakaway lanyard release style

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Copper alloy crimp pin contacts with gold plating
