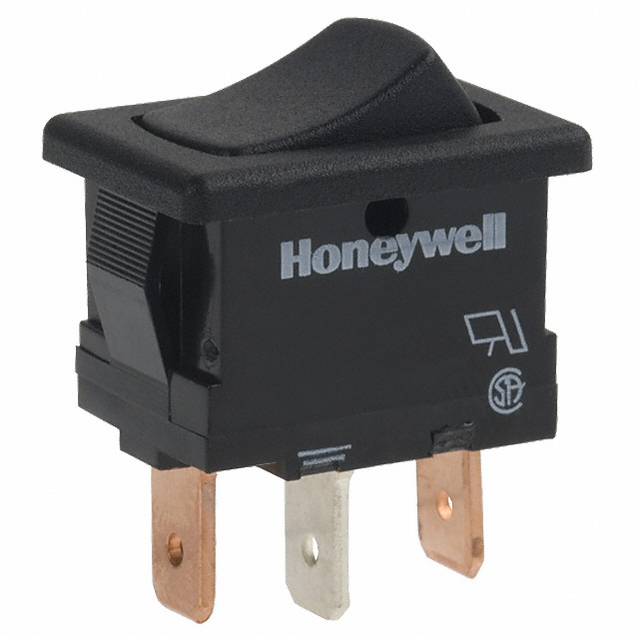

翘板开关 SPDT 2POS QC 12V Non-Lighted, Rect
Safely turn on and off designs with this rocker switch from . It has a SPDT configuration. This device has a maximum current rating of 8 A @ 250VAC. This rocker switch panel has an operating temperature range of 0 °C to 85 °C. The MRS93-11BB rocker switch panel has a quick connect termination style. The maximum AC voltage rating is 250 VAC. This product is 20.96 mm long, 27.2 mm tall and 14.99 mm deep.
接触器类型 Rocker
额定电压AC 125 V
额定电流 8A AC
排数 1
方向 Vertical
触点类型 SPST
额定电流Max 8A @250VAC
工作温度Max 85 ℃
工作温度Min 0 ℃
安装方式 Panel, Snap-In, Quick Connect
长度 20.96 mm
宽度 14.99 mm
高度 27.2 mm
颜色 Black
工作温度 0℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
